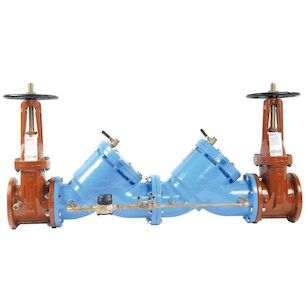

Name: 8 IN Cast Iron Double Check Detector Assembly Backflow Preventer with OSY Shutoffs Cubic Feet Meter 3/4 IN Bypass Epoxy Coated Using ArmorTek Technology
Brand: WATTS®
SKU: 1259339
Price: 57431 USD
Availability: OutOfStock

Attributes

BrandWATTS®

Backflow Preventer TypeDouble Check Detector Assembly

Body PatternIn-Line

BypassYes

Bypass Size0.75''

Depth82.5"

Disc MaterialRubber

FinishEpoxy Coated Using ArmorTek Technology

Height45"

IndustryPlumbing

Inlet Connection Size8"

Inlet Connection Size Metric200 mm

Inlet Connection TypeFlanged Joint

Inlet Shutoff Valve TypeOutside Stem and Yoke Gate Valve

MaterialCast Iron

Maximum Temperature Deg F110

Maximum Working Pressure Psi175

Meter TypeCubic' m

Minimum Temperature Deg F33

Outlet Connection Size8"

Outlet Connection TypeFlanged Joint

Outlet Shutoff Valve TypeOutside Stem and Yoke Gate Valve

Pressure OperationContinuous

Protection TypeBackpressure and Backsiphonage

Seat MaterialBronze

Series709DCDA

Weight1439 lbs.

Width35"

Shipping Dimensions (L x W x H)82.5" x 35" x 45"

Features & Benefits

Utilizes advanced ArmorTek coating technology to resist corrosion of internals
Cast iron body construction with patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion
Gallons per minute meter
Non-health hazard application
Outside stem and yoke shutoffs

Documents

0835235.pdf

ES-709DCDA.pdf

Marketing Information

This 8 inch double check detector backflow preventer assembly prevents backflow of non-health hazard fire protection system substances from being pumped or siphoned into the potable water supply. It incorporates 3/4 IN bypass with a cubic feet meter to detect ground leaks and unauthorized illegal taps, greatly reducing annual water expenses. It consists of a fused epoxy coated cast iron body and outside stem and yoke shutoffs. Its modular check design facilitate simple and easy installation and maintenance. The coating on this backflow assembly uses ArmorTek(R), a patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion. Maximum working pressure is 175 psi (12.06 bar).
