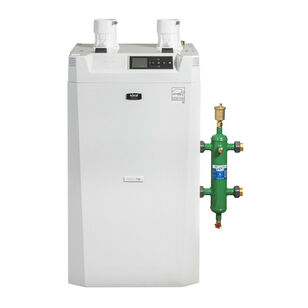

IDEAL IDEXFS199S NG EXALT FLOOR BOILER 199000 BTU HEAT ONLY ***NO MANUFACTURER WARRANTY. NO WARRANTY FROM KELLER SUPPLY. PRODUCT SOLD AS IS.
IDEAL IDEXFS199S NG EXALT FLOOR BOILER 199000 BTU HEAT ONLY ***NO MANUFACTURER WARRANTY. NO WARRANTY FROM KELLER SUPPLY. PRODUCT SOLD AS IS.
Ideal Heating Floor-Standing Boiler, Model: Exalt, 120 V, 10 A, 60 Hz Frequency, 1 ph, 95 % AFUE, 199000 Btu, 4 gal Capacity, 30 psi Pressure, NPT Connection, Natural Gas Fuel, Automatic Air Vent, Premix Burner, Chimney/Breeching/Vent Size: 3 in, 184 mbh DOE Heating, Ignition System: Direct Spark, Direct Spark Ignition, Net BTU Rating: 159 mbh, Stainless Steel, 185 deg F, Dimensions: 26 in H x 21-3/4 in W x 16-1/2 in D, Additional Information: 3/4 in Gas Connection, 1 in Supply or Return Connections
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$5,503.00Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandIdeal Heating
AFUE Rating95%
AHRI CertifiedYes
Amperage Rating10 A
BTU Rating199000 Btu
Burner TypePremix
Capacity4 gal
Chimney/Breeching/Vent Size3"
Connection TypeNPT
Dimensions26" H x 21-3/4" W x 16-1/2" D
DOE Heating Capacity184 mbh
Energy Star RatedYes
Frequency Rating60 Hz
Fuel TypeNatural Gas
Ignition SystemDirect Spark
Ignition TypeDirect Spark
IndustryHydronics
MaterialStainless Steel
Net BTU Rating159 mbh
Phase1 ph
Pressure Rating30 psi
Temperature Rating185 deg F
Vent TypeAutomatic Air
Voltage Rating120 V
Warranty10 Year Primary Heat Exchanger, 2 Year Part
Additional Information
3/4 in Gas Connection, 1 in Supply or Return Connections
Features & Benefits
- Left or right connections boiler, gas, condensate
- Internal circulator pump pre-installed
Marketing Information
The Exalt heat only floor-standing comes loaded with features such as Caleffi 548 Series separator, iAssist Wi-Fi connectivity and an all stainless steel fire tube heat exchanger. CTRLMAX control system EZ setup allows for a quick 60 s setup. Easy troubleshooting in plain text, no codes. The 3-in-1 universal vent adapter directly accepts PVC, polypropylene and stainless steel. Sizes are available in 110, 155, 199 mbh and can be cascaded up to six boilers.
