AHRI Certified|ASHRAE 90.1-2016|cULus Listed

• Factory charged with R-410A HFC refrigerant Wired and run tested Scroll compressors with internal line break overload and high pressure protection Convertible airflow vertical down flow or horizontal side flow Forkable base rails for easy handling and lifting Cooling operation up to 125 deg F ambient Two-stage gas heat input with direct spark ignition system, solid state furnace controls and optimized induced draft combustion Micro channel evaporator and condenser coil Overflow condensate sensor PlusOne® diagnostics with dual seven segment LED display to meet code compliance One-piece top cover and base pan with drawn supply and return opening Two-piece control door Quarter turn fasteners on filter access door Color-coded and labeled wiring External lockable gauge ports TXV refrigerant metering system Solid core liquid line filter drier High pressure and low pressure/loss of charge protection with built-in Smart Logic Insulation encapsulated throughout entire unit New product footprint with matching connections

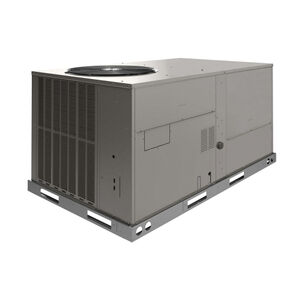

RGECZR/ZT Models in 3 to 5 ton-offer up to 16.2 SEER2/17 SEER and 12 EER2/12.5 EER. RGECZT Models in 6 ton-offer up to 14.6 IEER and 11.2 EER. With two-stage cooling (RGECZT Models only), the patent penting Velocifin™ heat exchanger and optional HumidiDry®, these Renaissance Models include many innovative features that enhance overall and part load performance to meet or exceed DOE 2023 requirements. Engineered with install ability and serviceability in mind, Renaissance makes easier, drop-in replacement possible in most cases without a curb adapter. Once installed, building owners and contractors will enjoy the serviceability advantages Renaissance offers with out ServiceSmart package that includes a Qwik-Clean drain pan, the Qwik-Slide Blower assembly and PlusOne® Diagnostics with dual seven segment LED display.
