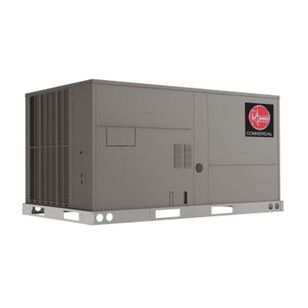

Rheem® RHPCZR060AJT000ACAA0 Commercial Heat Pump Package Unit, 5 ton Nominal, 59500 Btu Cooling, 4.96 kW, 208/230 V

Rheem® RHPCZR060AJT000ACAA0 Commercial Heat Pump Package Unit, 5 ton Nominal, 59500 Btu Cooling, 4.96 kW, 208/230 V

Rheem® RHPCZR060AJT000ACAA0 Commercial Heat Pump Package Unit, 5 ton Nominal, 59500 Btu Cooling, 4.96 kW, 208/230 V

MFG #RHPCZR060AJT000ACAA0

Item #1260023

Mfr. Part #RHPCZR060AJT000ACAA0

UPC #66202164190

Rheem® Commercial Heat Pump Package Unit, RHPCZR Series, 060AJT Model, 5 ton Nominal Capacity, 59500 Btu Cooling BTU Rating, 35000 Btu Low Temperature, 57500 Btu High Temperature Heating BTU Rating, 208/230 V Voltage Rating, 49 A Minimum Circuit, 2.5 A Full Load Condenser Motor, 11.5 A Full Load Evaporator Fan Amperage Rating, 4.96 kW Wattage, 1 hp Indoor Fan, 1/2 hp Outdoor Fan HP Rating, 60 Hz Frequency Rating, 1 ph Phase, 1050 rpm Indoor Fan, 1075 rpm Outdoor Fan Rotational Speed, Scroll Compressor Type, 2000 cfm Rating, 14/13.4 SEER Rating, 8/6.7 HSPF Rating, 11/10.6 EER Rating, Horizontal Sideflow, Vertical Downflow Configuration, Connection Type: NPT Drain, 3/4 in Connection, R-410A Refrigerant Type, 1 Number of Stages, 70 A Fuse Rating, 83.3 dB Sound Level, Roof Top Mounting Type, Direct Standard Static Constant Torque Drive Type, 7.52 sq-ft Face Area Indoor, 16.52 sq-ft Face Area Outdoor Coil Rating, 20 Indoor, 23 Outdoor Fins per Inch, (4) 2 x 16 x 16 in Filter Size, 16.85 kW Resistance Heat, 18 ga Sheet Metal Cabinet, 125 deg F Ambient Cooling Temperature Rating, 41-3/8 in H x 79-1/4 in W x 46-3/4 in D Dimensions, Small Commercial Cabinet, 3 Tier, A Major Series, First Generation Minor Series, Core Command Non-Communicating Control Additional Information

Why Create an Account?

  • Ability to track orders
  • More Options & Savings
  • Amazing Customer Service
$19,024.59 / ea
Out of Stock
Attributes
BrandRheem®
Additional InformationSmall Commercial Cabinet, 3 Tier, A Major Series, First Generation Minor Series, Core Command Non-Communicating Control
Amperage Rating49 A Minimum Circuit, 2.5 A Full Load Condenser Motor, 11.5 A Full Load Evaporator Fan
CFM Rating2000
Coil Rating7.52 sq-' Face Area Indoor, 16.52 sq-' Face Area Outdoor
Compressor TypeScroll
ConfigurationHorizontal Sideflow, Vertical Downflow
Connection Size3/4
Connection TypeNPT Drain
Cooling BTU Rating59500
Dimensions41-3/8 " H x 79-1/4 " W x 46-3/4 " D
Drive TypeDirect Standard Static Constant Torque
EER Rating11/10.6
Filter Size(4) 2 x 16 x 16
Fins per Inch20 Indoor, 23 Outdoor
Frequency Rating60
Fuse Rating70
Heating BTU Rating35000 Btu Low Temperature, 57500 Btu High Temperature
HP Rating1 hp Indoor Fan, 1/2 hp Outdoor Fan
HSPF Rating8/6.7
IndustryHVAC
Material18 ga Sheet Metal Cabinet
Model060AJT
Mounting TypeRoof Top
Nominal Capacity5
Number of Stages1
Phase1
Refrigerant TypeR-410A
Resistance Heat16.85
Rotational Speed1050 rpm Indoor Fan, 1075 rpm Outdoor Fan
SEER Rating14/13.4
SeriesRHPCZR Series
Sound Level83.3
Temperature Rating125 deg F Ambient Cooling
Voltage Rating208/230
Wattage4.96
