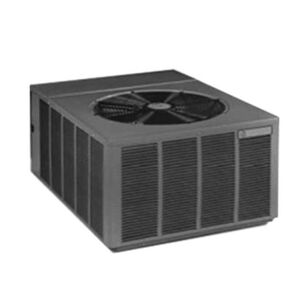

Rheem® A951E RPQL-030JEZ Heat Pump, 2.5 ton, 30000 Btu/hr BTU, 208-230 V, 20 A, 1 ph Phase, Steel, R-410A Refrigerant
Rheem® A951E RPQL-030JEZ Heat Pump, 2.5 ton, 30000 Btu/hr BTU, 208-230 V, 20 A, 1 ph Phase, Steel, R-410A Refrigerant
Rheem® Heat Pump, Prestige® RPQL-JEZ Series, 208-230 V Voltage Rating, 20 A Amperage Rating, 8.79 kW Power Rating, 60 Hz Frequency Rating, 1 ph Phase, 30000 Btu/hr BTU Rating, 1925 cfm Rating, 13 EER Rating, 15 SEER Rating, 10 HSPF Rating, Scroll Compressor Type, R-410A Refrigerant Type, 3/8 in Liquid Line Size, 3/4 in Suction Line Size, 30 A Fuse Rating, 17.1 sq-ft Face Area Coil Rating, 2.5 ton Tonnage, 1 Number of Stages, Steel, Galvanized/Powder Painted, 44-3/8 in L x 31-1/2 in W x 33 in H Dimensions, 1 Number of Rows Additional Information
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$5,190.80 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Additional Information1 Number of Rows
Amperage Rating20
BTU Rating30000
CFM Rating1925
Coil Rating17.1 sq-' Face Area
Compressor TypeScroll
Dimensions44-3/8 " L x 31-1/2 " W x 33 " H
EER Rating13
FinishGalvanized/Powder Painted
Frequency Rating60
Fuse Rating30
HSPF Rating10
Liquid Line Size3/8
MaterialSteel
Number of Stages1
Phase1
Power Rating8.79
Refrigerant TypeR-410A
SEER Rating15
SeriesPrestige RPQL-JEZ Series
Suction Line Size3/4
Tonnage2.5
Voltage Rating208-230
Warranty10 Year Limited Compressor, 5 Year Conditional Unit Replacement
Additional Information
AHRI Certified|cULus Listed|Energy Guide|ENERGY STAR Certified|ISO 9001:2008
Features & Benefits
- Scroll compressor is hermetically sealed and incorporates internal high temperature motor overload protection and durable insulation on the motor windings, it is externally-mounted on rubber grommets to reduce vibration and noise Enhanced compressor protection features an enhanced defrost control, auto reset high pressure control and auto reset low pressure control to provide compressor protection Compressors have an internal pressure relief assembly to protect against excessive pressure differential All refrigerant connections are on the exterior of the unit, located close to the ground for neat appearing installations Enhanced compressor sound blanket is standard Hot gas muffler reduces noise in heating cycle Bi-directional filter drier standard on all models Service valves are standard on all models Refrigerant metering TEV accurately meter refrigerant into indoor and outdoor coils Copper tube/aluminum fin coils are used on all models The control box is located in the top corner of the cabinet providing for easy-access through a service panel Field connections for power and control wiring are kept separate Every unit is factory charged and run-tested Separate compressor compartment for easy service access Drawn, painted base pan for extra corrosion resistance and sound reduction Hard start kits standard on all JEZ models Control box cover Equipped with the comfort control system Sweat with scroll cooling connection fitting
