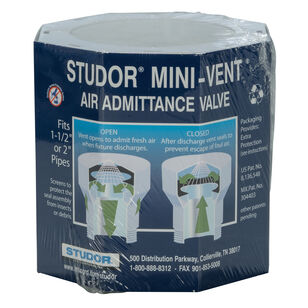

STUDOR® Mini-Vent® 20300 Air Admittance Valve, 1-1/2 x 2 in, NPT, 160 DFU, 24 DFU, ABS
STUDOR® Mini-Vent® 20300 Air Admittance Valve, 1-1/2 x 2 in, NPT, 160 DFU, 24 DFU, ABS
STUDOR® Mini-Vent® Air Admittance Valve, 1-1/2 x 2 in Connection, NPT Connection, DFU Rating: 160 DFU, 24 DFU, -40 to 150 deg F, ABS, 2-5/8 in Overall Length, 2 in Overall Width
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$66.17 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSTUDOR®
ApplicationFor commercial and residential applications
Connection Size1-1/2 x 2
Connection TypeNPT
DFU Rating160 DFU, 24 DFU
IndustryPlumbing
MaterialABS
Overall Length2-5/8
Overall Width2
Temperature Rating-40 to 150
WarrantyLimited Lifetime
Additional Information
ANSI/ASSE 1051, 1050|C-IAPMO Approved|ICC-ES PMG-1025|ETL Listed|NSF 14
Features & Benefits
- Can be used as an individual, branch, circuit or stack vent Will vent up to 160 DFUs on a branch Will vent up to 24 DFUs on stack Expands architectural design limits Reduces the number of fire-stopping applications Exclusive vermin protection system
Marketing Information
With its compact design, the STUDOR® mini-vent air admittance valve with PVC adapter offers a simple drain and waste venting solution. Great for venting a single fixture or a group of bathroom fixtures, the mini-vent air admittance valve is designed to fit 1-1/2 and 2 in pipes and excels in tight applications. This one-way valve automatically opens and takes in fresh air when negative pressure (suction) occurs from a fixture discharging into the plumbing system. When the water flow stops, the mini-vent closes naturally due to gravity, preventing the circulation of any bad bathroom or drain odors.
STUDOR® Mini-Vent® 20300 Air Admittance Valve, 1-1/2 x 2 in, NPT, 160 DFU, 24 DFU, ABS
BrandSTUDOR®
MFG #20300
Keller #126133
