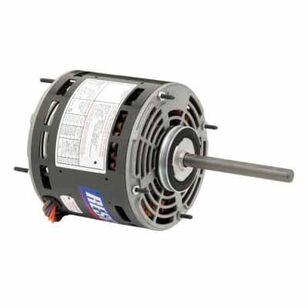

US Motors® 5469 Fan and Blower Motor, 208 to 230 VAC, 2.4 A, 1/8 to 1/3 hp, 825 rpm Speed, 1 ph -Phase, 60 Hz
US Motors® 5469 Fan and Blower Motor, 208 to 230 VAC, 2.4 A, 1/8 to 1/3 hp, 825 rpm Speed, 1 ph -Phase, 60 Hz
US Motors® Fan and Blower Motor, 208 to 230 VAC, 2.4 A, 1/8 to 1/3 hp, 825 rpm, 1 ph Phase, 60 Hz, Open Air Over Motor Enclosure, 48Y Frame, 1/2 in Dia x 4-1/2 in L Shaft, Reversible Rotation, 2 Speed, Self-Aligning Ball Bearing, Hub Ring Mounting, Direct Drive, Continuous, B Insulation Class, 1 Service Factor, Rolled Steel, 40 deg C, 5.6 in Dia x 9.8 in L
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$884.16 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating2.4
Bearing TypeSelf-Aligning Ball
Dimensions5.6 " Dia x 9.8 " L
Drive TypeDirect
Duty TypeContinuous
Frame Size48Y
Frequency Rating60
HP Rating1/8 to 1/3
IndustryHVAC
Insulation ClassB
MaterialRolled Steel
Motor Enclosure TypeOpen Air Over
Mounting TypeHub Ring
Number of Speeds2
Phase1
Rotation TypeReversible
Service Factor1
Shaft Size1/2 " Dia x 4-1/2 " L
Speed Rating825
Temperature Rating40
Voltage Rating208 to 230
Additional Information
CSA Certified|UL Listed
Features & Benefits
- Studs extensions on popular models Designed for use with 370 VAC capacitor 24 in lead length Connection and capacitor information furnished in the nameplate data Bearings have all angle throughst system Automatic reset thermal overload protection Capacitor 7.5 uF at 370 VAC All angle mounting position
Documents
US Motors® 5469 Fan and Blower Motor, 208 to 230 VAC, 2.4 A, 1/8 to 1/3 hp, 825 rpm Speed, 1 ph -Phase, 60 Hz
BrandRheem®
MFG #5469
Keller #1261726
My Part ##
Last Ordered#
$884.16 / ea
