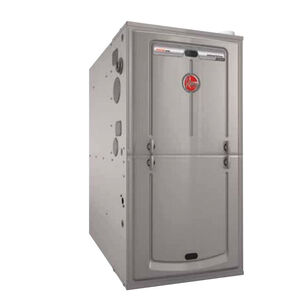

Rheem® Eclipse Series R98MV1005A21UPSGAP Gas Furnace, 5 ton, 100000 Btu/hr Input BTU, 115 V, 3/4 hp, 98 % AFUE, Upflow
Rheem® Eclipse Series R98MV1005A21UPSGAP Gas Furnace, 5 ton, 100000 Btu/hr Input BTU, 115 V, 3/4 hp, 98 % AFUE, Upflow
Rheem® Gas Furnace, Endeavor™ Line Prestige® Series, R98MV Model, 100000 Btu/hr Input BTU Rating, 97000 Btu/hr Output BTU Rating, 115 V Voltage Rating, 13 A Amperage Rating, 1750 cfm Cooling, 1644 cfm Heating CFM Rating, 3/4 hp Rating, 98 % AFUE Rating, 559 W Wattage, 1 ph Phase, 60 Hz Frequency Rating, Upflow Configuration, Connection Type: NPT, 1/2 in Connection, Natural, Propane Gas Fuel Type, 10 in W x 11 in D Blower Size, 34 in H x 21 in W x 29.63 in D Cabinet Dimensions, Constant CFM, Variable Speed ECM Motor Type, Vent Vent, Ducted or Ductless, 20 A Fuse Rating, 5 ton Tonnage, PlusOne™ Ignition System, Direct Spark Ignition Type, 1 in-WC, 40 to 70 deg F Temperature Rise, Modulating Heating Stage Additional Information
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$11,435.50 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRheem®
Additional InformationModulating Heating Stage
AFUE Rating98
Amperage Rating13
ApplicationResidential Applications
Blower Size10 " W x 11 " D
Cabinet Dimensions34 " H x 21 " W x 29.63 " D
CFM Rating1750 cfm Cooling, 1644 cfm Heating
ConfigurationUpflow
Connection Size1/2
Connection TypeNPT
Frequency Rating60
Fuel TypeNatural, Propane Gas
Fuse Rating20
HP Rating3/4
Ignition SystemPlusOne
Ignition TypeDirect Spark
IndustryHVAC
Input BTU Rating100000
ModelR98MV
Motor TypeConstant CFM, Variable Speed ECM
Output BTU Rating97000
Phase1
Pressure Rating1
SeriesEndeavor Line Prestige Series
Temperature Rise40 to 70
Tonnage5
Voltage Rating115
Warranty10 Year Limited Parts, Limited Lifetime Heat Exchanger
Wattage559
Additional Information
AHRI Certified|CSA Certified|cULus Listed|ENERGY STAR Certified
Features & Benefits
- PlusOne™ diagnostics - industry first, seven-segment LED for quick and easy service Proven direct spark ignition (DSI) for reliability and longevity Rheem®-exclusive patented block drain sensor that automatically shuts-off the furnace when the drain is blocked and alerts the contractor via diagnostic code Gradual auto-adjustment from low to 100% of capacity to meet precise comfort requirements Truly variable speed technology allows for ultimate humidity control, quieter sound levels and year round energy savings A fully insulated blower cabinet, solid bottom and truly variable speed airflow technology makes this furnace of the quietest available The latest in sensor technology and the EcoNet® monitoring system provides a new level of protection, control and energy saving Allows on the-go control and receipt of system alerts by the homeowner via the EcoNet® smart thermostat and EcoNet® App
Marketing Information
The EcoNet® Enabled Rheem® Endeavor™ Line Prestige® Series R98MV is ENERGY STAR certified, offering one of the highest efficiencies available today. Monthly utility bills go down while you stay consistently comfortable.
Rheem® Eclipse Series R98MV1005A21UPSGAP Gas Furnace, 5 ton, 100000 Btu/hr Input BTU, 115 V, 3/4 hp, 98 % AFUE, Upflow
BrandRheem®
MFG #R98MV1005A21UPSGAP
Keller #1262054
