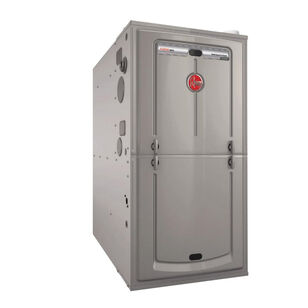

Rheem® Endeavor™ Ovation Series R97MV0603A17DHSGAP Line Gas Furnace, 3 ton, 56000 Btu/hr Input BTU, 115 V, 954 cfm
Rheem® Endeavor™ Ovation Series R97MV0603A17DHSGAP Line Gas Furnace, 3 ton, 56000 Btu/hr Input BTU, 115 V, 954 cfm
Rheem® Line Gas Furnace, Prestige® Series, 56000 Btu/hr Input BTU Rating, 54320 Btu/hr Output BTU Rating, 115 V Voltage Rating, 954 cfm Rating, 1/2 hp HP Rating, 97 % AFUE Rating, 373 W Wattage, 1 ph Phase, 60 Hz Frequency Rating, 2 Number of Stages, Downflow, Horizontal Configuration, Connection Type: NPT, 1/2 in Connection, 5 Number of Speeds, 8 in W x 11 in D Blower Size, 17-1/2 in W Cabinet Dimensions, ECM Motor Type, Vent Vent, Ducted or Ductless, 2 in, 3 in Vent Size, 10 A Fuse Rating, 3 ton Tonnage, PlusOne® Ignition System, Direct Spark Ignition Type, Steel, Aluminized, 40 to 70 deg F Temperature Rise
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$9,792.78 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
AFUE Rating97
Blower Size8 " W x 11 " D
Cabinet Dimensions17-1/2 " W
CFM Rating954
Color/FinishAluminized
ConfigurationDownflow, Horizontal
Connection Size1/2
Connection TypeNPT
FinishAluminized
Frequency Rating60
Fuse Rating10
HP Rating1/2
Ignition SystemPlusOne
Ignition TypeDirect Spark
IndustryHVAC
Input BTU Rating56000
MaterialSteel
Motor TypeECM
Number of Speeds5
Number of Stages2
Output BTU Rating54320
Phase1
SeriesPrestige Series
Temperature Rise40 to 70
Tonnage3
Vent Size2 ", 3 "
Voltage Rating115
WarrantyLimited
Wattage373
Additional Information
AHRI Certified|CSA Certified|ENERGY STAR Certified|UL Listed
Features & Benefits
- PlusOne® energy efficiency - ENERGY STAR certified, featuring 97% AFUE across all model sizes PlusOne® diagnostics - industry first, seven-segment LED display makes service calls quick and easy PlusOne® ignition system - proven direct spark ignition (DSI) for reliability and longevity PlusOne® water management system - exclusive patented block drain sensor that automatically shuts off the furnace when the drain is blocked and alerts the contractor via diagnostic code Modulating heating stage - gradual auto-adjustment from low to 100% of capacity to meet precise comfort requirements Constant CFM motor - truly variable speed technology allows for ultimate humidity control, quieter sound levels and year round energy savings Quietest operation - a fully insulated blower cabinet, solid bottom and truly variable speed airflow technology makes this furnace of the quietest available EcoNet® enabled furnace - the latest in sensor technology and the EcoNet® monitoring system provides a new level of protection, control and energy savings Allows on the go control and receipt of system alerts by the homeowner via the EcoNet® smart thermostat and EcoNet® App2
