UL 103HT

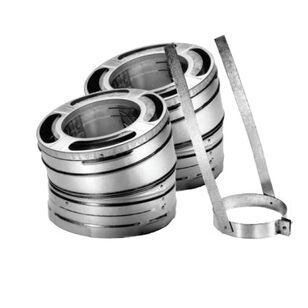

• Use for offsets around obstructions such as rafters, ridgepoles or joists May have two pairs of elbows, if needed Offsets greater than 30 deg are not permitted in accordance to UL 103 standards Elbows swivel 360 deg at base (angles are not adjustable) A pair of elbows is required to return an offset chimney back to vertical

DuraPlus® is designed to stay cool on the outside, to provide a hot draft on the inside, to boost stove efficiency and to provide for a fire-safe design that protects both the chimney and the building. This triple wall chimney features two insulating layers (ceramic blanket, plus air space). The ceramic blanket insulation is held securely in position, eliminating hot spots common with loose fill type insulations. In the event of a creosote fire, the compressible blanket insulation permits the chimney liner to expand outwardly in a radial direction. Designed for normal, continuous operation at 1000 deg F flue gas temperatures, DuraPlus® subjected to rigorous and stringent HT requirements of the UL standard, including one hour at 1400 deg F, plus three ten minute chimney fire tests at 2100 deg F.
