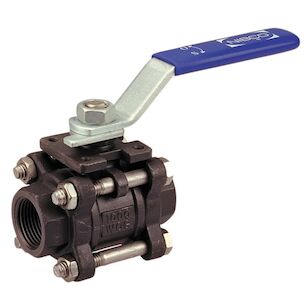

NIBCO TM595CSR66LL-1IN BALL VALVE
NIBCO TM595CSR66LL-1IN BALL VALVE
NIBCO®, 1 in Nominal, Connection Type: FIPT, Full Port, 1000 psi CWP, Quarter-Turn Locking Lever Handle with ISO Actuator Mounting Pad Operator, Carbon Steel Body, Stainless Steel Stem, Reinforced PTFE Seal, Stainless Steel Trim
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$372.80 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Body MaterialCarbon Steel
Connection TypeFIPT
Nominal Size1
Operator TypeQuarter-Turn Locking Lever Handle with ISO Actuator Mounting Pad
Port TypeFull
Pressure Rating1000 psi CWP
Seal MaterialReinforced PTFE
Stem MaterialStainless Steel
Trim MaterialStainless Steel
Features & Benefits
- Valve pressure rating 1,000 psi 69 bar non-shock cold working pressure Maximum temperature rating 400 degrees F Full port Blowout-proof stem Stainless steel ball and stem Vented ball Locking lever handle Threaded ISO mount Conforms to MSS SP-110
Documents
Marketing Information
The NIBCO pecent carbon steel ball valve provides ease of operation with quarter-turn (90 degrees) open to close. It may be used for isolation and throttling (half open to full open only). Please refer to NIBCO technical data sheets, valve selection guides, chemical resistance guide and catalog for engineering and installation information. Choose NIBCO pecent ball valves for the most specified, versatile and economical valve option in commercial and industrial applications. NIBCO pecent ball valves are backed by the exclusive NIBCO INC. 5-year 125% limited warranty.
NIBCO TM595CSR66LL-1IN BALL VALVE
BrandNIBCO®
MFG #NL99J5A
Keller #1264865
My Part ##
Last Ordered#
$372.80 / ea
