• The indictors are a failsafe measure meaning that they will not illuminate until the blade of the damper has gone to its full open or full closed position Use with BM and BMPlus control panel Poron sealing gasket With sealing gasket

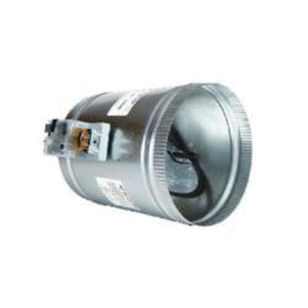

The URD series of round motorized dampers are a double layered blade design with an integrated Poron sealing gasket. The superior design insures long life and zero maintenance. URD dampers are easy to install, easy to wire up and come with a 5 year warranty. The URD damper is constructed of heavy 24 ga galvanized steel with factory rolled stiffening beads. The nylon bearings and Thermotuff drive shafts insure smooth, quiet operation and provide a thermal barrier to the motor. The URD is designed to operate reliably at static pressures up to 1.5 in WC. The UL listed MA-ND5 actuator is a 24 VAC 3 wire power-open/power-close type rated at 18 in-lb of torque. It includes an integrated wiring terminal block and a NEMA1 rated housing. The MA-ND5 motor features bright green and red LED's which correspond to the open and closed position of the blade. The motor also includes adjustable End-Stops for min/Max blade position, that allows for field balancing of the full or minimum CFM flow, into a particular zone or area. The position LED's will illuminate regardless of the end Stop positions.
