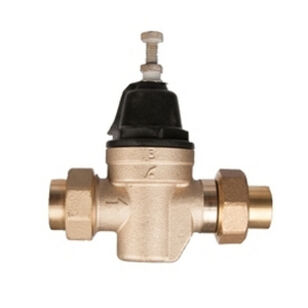

MIFAB® PRV-C-LL Series PRV1.00-SU-IPS-C-LL Compact Pressure Reducing Valve, 1 in Nominal, 300 psi, 33 to 180 deg F
MIFAB® PRV-C-LL Series PRV1.00-SU-IPS-C-LL Compact Pressure Reducing Valve, 1 in Nominal, 300 psi, 33 to 180 deg F
MIFAB® Compact Pressure Reducing Valve, PRV-C-LL Series, 1 in Nominal, Union Female Threaded x Female Threaded Connection, 300 psi, Water Media, 4.96 in Top to Inlet Center, Material Standard: ASTM B584, Copper Body, Polymer Seat, Elastomer Disc, Stainless Steel Trim, EPDM Softgoods, 33 to 180 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$142.00 / EA
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandMIFAB®
Body MaterialCopper
Connection TypeUnion Female Threaded x Female Threaded
Disc MaterialElastomer
IndustryPlumbing
Material StandardASTM B584
MediaWater
Nominal Size1
Pressure Rating300
Seat MaterialPolymer
SeriesPRV-C-LL Series
Softgoods MaterialEPDM
Temperature Rating33 to 180
Top to Inlet Center4.96
Trim MaterialStainless Steel
Additional Information
ANSI A112.26.2|ASSE 1003|CSA B356|CSA Certified|IAPMO Listed|UPC Certified
Features & Benefits
- Internal by-pass for thermal expansion Convenient strainer and seat access, in-line serviceability Corrosion-resistant body and cover
Marketing Information
A water pressure reducing valve with a built-in strainer shall be installed in the incoming water line where supply main pressure exceeds 60 psi (413 kPa). The pressure reducing valve shall consist of a bronze body and metal cap and shall have an adjustment screw to allow adjusting the pressure down to 50 psi (345 kPa) and shall be designed for incoming pressures up to 300 psi (20.7 bar). The device must have a built-in strainer that will stop debris from entering the pressure reducing chamber and is removable for cleaning. Valve shall be of the balanced piston design and shall reduce pressure in both flow and no-flow conditions.
