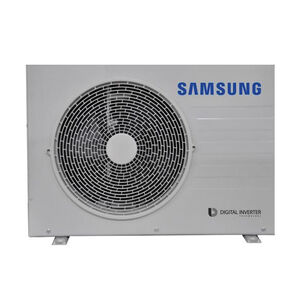

Samsung AC018BXSCCC/AA High-Wall Evaporator Outdoor Unit, 208 to 230 V, 10.6 A, 18000 Btu/hr Cooling, 1 ph Phase, Steel
Samsung AC018BXSCCC/AA High-Wall Evaporator Outdoor Unit, 208 to 230 V, 10.6 A, 18000 Btu/hr Cooling, 1 ph Phase, Steel
Samsung High-Wall Evaporator Outdoor Unit, 208 to 230 V, 10.6 A, 6.45 kW, 60 Hz, 1 ph, 3 Fan Speeds, 18000 Btu/hr Cooling, 1413 cfm Cooling CFM Rating, 12 EER Rating, 20.5 SEER, Connection Type: Flared, 1/4 in Liquid Line, 1/2 in Suction Line, 15 A Fuse Rating, Inverter Drive, 48 dBA Cooling Sound Level, Steel, Galvanized/Powder-Coated, -40 to 122 deg F Cooling Operating Temperature, 12-3/16 in Overall Length, 34-9/16 in Overall Width, 25-1/8 in Overall Height, Additional Information: R-410A Refrigerant Type
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,711.88 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Marketing Information
Attributes
BrandSamsung
Additional InformationR-410A Refrigerant Type
Amperage Rating10.6
Connection TypeFlared
Cooling BTU Rating18000
Cooling CFM Rating1413
Cooling Operating Temperature-40 to 122
Cooling Sound Level48
Correct Item GroupSingle Zone Outdoor Units
Drive TypeInverter
EER Rating12
FinishGalvanized/Powder-Coated
Frequency Rating60
Fuse Rating15
Liquid Line Size1/4
MaterialSteel
Number of Fan Speeds3
Overall Height25-1/8
Overall Length12-3/16
Overall Width34-9/16
Phase1
Power Rating6.45
SEER Rating20.5
Suction Line Size1/2
Voltage Rating208 to 230
Additional Information
AHRI Certified|cETLus Listed|UL 60335-2-40
Features & Benefits
- The outdoor unit shall supply power to indoor unit via 14 AWG X 3 power wire High-voltage terminal block temperature sensor to disable unit in the event overheating of power connection Auto-restart after power loss Soft-start compressor minimizing current inrush All heat exchangers shall be mechanically bonded aluminum fin to copper tube The condensing unit heat exchanger salt spray test method: ASTM-B117-18 - the heat exchanger showed no unusual rust or corrosion development to 3,000 hours Low ambient cooling down to -40 deg F The outdoor unit shall have snow accumulation prevention option setting to prevent snow drifting against an idle outdoor unit Outdoor unit: Galvanized steel with a baked-on powder-coated finish for durability Control wiring shall be 2 X 16 AWG Wireless controller included as standard No additional interface modules/adapters are required when connecting to Samsung central control options The unit shall be operated via a wireless or wired remote control with DDC type signal The compressor shall be hermetically sealed, inverter-controlled Twin BLDC rotary type Refrigerant flow shall be controlled by an electronic expansion valve at the outdoor unit
Marketing Information
CAC High Wall units connect to CAC universal outdoor unit models AC0**BX****/AA. 18K and 24K btu/h High-Wall units will use the WindFree™* type chassis, and 30K and 36K btu/h High-Wall units will use the Max chassis.
