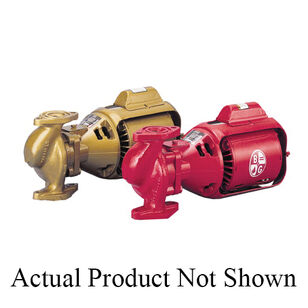

Bell & Gossett 100 Series 100-BNFI 106197LF Circulator Pump, 0 to 33 gpm, 115 V, 1.75 A, 60 Hz, 125 psi Max Pressure
MFG #106197LF
Item #126709
Mfr. Part #106197LF
UPC #683328222431
Bell & Gossett Circulator Pump, 100 Series, Model: 100-BNFI, 0 to 33 gpm Flow Rate, 8 ft Maximum Head, 115 V, 1.75 A, 60 Hz, 125 psi Maximum Pressure, 1725 rpm Motor Speed Rating, 1/12 hp, 3/4 in, 1 in, 1-1/4 in, 1-1/2 in Connection, NPT Flanged Connection, 1 ph Phase, In-Line Mounting, 225 deg F, Ball Bearing, Bronze, 14-7/8 in L x 6-3/8 in H, Additional Information: Plastic Impeller Material
Why Create an Account?
Ability to track orders
More Options & Savings
Amazing Customer Service
$1,774.00Â /Â ea
Out of Stock
Attributes
Additional Information
Features & Benefits
Documents
Attributes
BrandBell & Gossett
Additional InformationPlastic Impeller Material
Amperage Rating1.75
Bearing TypeBall
Connection Size3/4 ", 1 ", 1-1/4 ", 1-1/2 "
Connection TypeNPT Flanged
Dimensions14-7/8 " L x 6-3/8 " H
Flow Rate0 to 33
Frequency Rating60
HP Rating1/12
IndustryPlumbing
MaterialBronze
Maximum Head8
Maximum Pressure125
Model100-BNFI
Motor Speed Rating1725
Mounting Type"-Line
Phase1
Series100 Series
Temperature Rating225
Voltage Rating115
Additional Information
CSA Certified|UL Listed
Features & Benefits
Flexible spring noise dampening coupler adds to quiet operation
Long bronze sleeve bearings maintain shaft alignment and longer life
Precision ground pump shaft, oversized to provide large bearing surfaces ensuring long seal and bearing life
Centrifugal impeller prevents air build-up at seal faces to assure long life
Close tolerances minimize water seepage and maximum efficiency
Three part pump assembly and two part motor bracket make servicing system quick and easy
