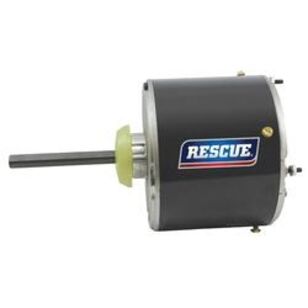

US Motors® 5464H Condenser Fan Motor, 208 to 230 VAC, 1.9/1 A Full Load, 1/3 to 1/6 hp, 825 rpm Speed, 1 ph -Phase
US Motors® 5464H Condenser Fan Motor, 208 to 230 VAC, 1.9/1 A Full Load, 1/3 to 1/6 hp, 825 rpm Speed, 1 ph -Phase
US Motors® Condenser Fan Motor, 208 to 230 VAC, 1.9/1 A Full Load, 1/3 to 1/6 hp, 825 rpm, 1 ph Phase, 60 Hz, Totally Enclosed Air Over Motor Enclosure, 48Y Frame, 1/2 in Dia x 5 in L Shaft, Reversible Rotation, 2 Speed, Ball Bearing, Stud Mounting, F Insulation Class, Continuous, 8 Poles, 70 deg C, 5.6 in Dia x 10.3 in L
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$507.74 / ea
In Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating1.9/1 A Full Load
Bearing TypeBall
Dimensions5.6 " Dia x 10.3 " L
Duty TypeContinuous
Frame Size48Y
Frequency Rating60
HP Rating1/3 to 1/6
IndustryHVAC
Insulation ClassF
Motor Enclosure TypeTotally Enclosed Air Over
Mounting TypeStud
Number of Poles8
Number of Speeds2
Phase1
Rotation TypeReversible
Shaft Size1/2 " Dia x 5 " L
Speed Rating825
Temperature Rating70
Voltage Rating208 to 230
Features & Benefits
- Automatic reset thermal overload protection Designed for 370 VAC capacitor Special treated rotor for corrosion protection High-efficiency design Extended mounting studs Capacitor 10 uF at 208 VAC, 7.5 uF at 230 VAC Side shell and lead end mounting screws Includes lead end mounting holes for Rheem® or Trane units
US Motors® 5464H Condenser Fan Motor, 208 to 230 VAC, 1.9/1 A Full Load, 1/3 to 1/6 hp, 825 rpm Speed, 1 ph -Phase
BrandRheem®
MFG #5464H
Keller #1268984
My Part ##
Last Ordered#
$507.74 / ea
