Rheem®

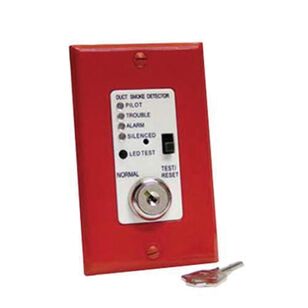

RHEPTS AC MSR-100R/R REMOTE ACCESSORY - CONTROLLER - RED
Rheem®
RHEPTS AC MSR-100R/R REMOTE ACCESSORY - CONTROLLER - RED
MFG #MSR-100R/R
Item #1270512
Mfr. Part #MSR-100R/R
UPC #662766463224
Air Products and Controls Remote Indicator/Control Assembly, 24 VDC, Red Alarm LED, Green Pilot LED, Yellow Trouble LED Visual Indicator Type, 87 dBA at 10 ft (High), 83 dBA at 10 ft (Low), 14-28 AWG Solid/Stranded Wire, 25 mA Alarm, 18 mA Standby Alarm Current, 2-3/4 in Width, 4-1/2 in Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$237.07 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRheem®
Alarm Current25 mA Alarm, 18 mA Standby
Height4-1/2
IndustryHVAC
Power Source24
Sound Level87 dBA at 10 ' (High), 83 dBA at 10 ' (Low)
Visual Indicator TypeRed Alarm LED, Green Pilot LED, Yellow Trouble LED
Width2-3/4
Wire Type14-28 AWG Solid/Stranded
Additional Information
C/US UL Listed|CSFM Listed|MEA accepted
Features & Benefits
- Visual indication of detector pilot, trouble and alarm functions Selectable audible indication of alarm, trouble or both Buzzer silence function, with silenced indication and ringback following condition correction Key-operated detector test and reset functions Lever operated no-tools terminal block Port for plugging in the optional strobe assembly Black duct smoke detector decal included for front plate Blue smoke, red fire strobe lens decals included for both horizontal and vertical mounting Lamp/buzzer test function For SL and SM series duct smoke detectors
Marketing Information
MSR series remote accessories are designed to be used with Air Products and Controls duct smoke detectors to provide the most complete functionality ever available in such a device.
