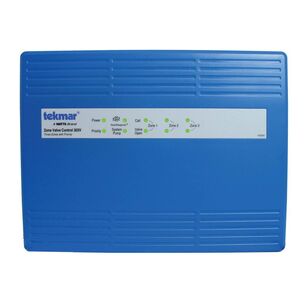

Zone Valve Control, Three Zones with Priority
Zone Valve Control, Three Zones with Priority
Zone Valve Control, Three Zones with Priority
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$302.00 / ea
In Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandTekmar®
Ambient Temperature Range32 to 122 degree F
Boiler Mix Modulating Output0 - 10 VDC, 500 Ohm Minimum Load Impedance, 4 - 20 mA, 1 kOhm Maximum Load Impedance
Control Load7 VA at 24 VAC
Control TypeMicroprocessor
Depth2.38"
Enclosure MaterialAbs,Galvanized Steel
FusesT5A 250 V Slow Blow, (2) Spare Fuses Included
Height8.19"
Indoor OutdoorIndoor
IndustryHydronics
NEMA RatingNEMA 1
Power Supply115 VAC plus /-10 percent , 60 Hz, 11 A
Prop 65 WarningYes
Relative Humidity<=90 percent Non-Condensing
RelayEnd Switch Relay: Boiler, DHW 24 VAC, 5 A, Pump Relay: 230 VAC, 5 A, 1/3 hp
SafetylistCSA C US
Suitable For Use WithLow Voltage Thermostats
Transformer40 VA at 24 VAC, Expandable to 80 VA with Additional Transformer M3069 (Sold Separately)
Width10.69"
Zone Valve Outputs24 VAC, 2 A Maximum Each, (1) Transformer 33 VA, (2) Transformers 73 VA
Features & Benefits
- CSA approved
- RoomResponse signal, compatible with all low voltage thermostats
- Two spare fuses included
- Fuses protect transformers and pumps
- LED for each zone, priority, end switch and RoomResponse, away signal shared between tekmar thermostats
- Four ground screws, top, bottom and back conduit knockouts
- Compatible with 2, 3 and 4-wire zone valves, unlimited zone expansion
- Zone priority, priority override
- Post purge, LED for each zone, priority, end switch and RoomResponse
Documents
Zone Valve Control, Three Zones with Priority
BrandTekmar®
MFG #303V
Keller #1271341
My Part ##
Last Ordered#
$302.00 / ea
