Square Shape

• Innovative star pattern of integral risers allows for installation of equipment with different size footprints up to 32 x 32 in Heat Pump Pad™ kit includes eight anti-vibration pads custom made to fit into the guide slots on the top of the integral risers and can be adjusted to equipment footprint The base is sloped outward to allow for easy drainage of condensate or defrost cycle condensate when the outdoor coil is operating in heat pump mode The nestable feature of the Heat Pump Pad™ makes for efficient shipping, transportation and warehousing Environmentally friendly, molded from recycled polypropylene material Unaffected by UV exposure or extreme weather Drillable making it easy to secure equipment to the pad if necessary

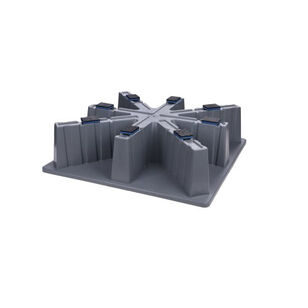

The Heat Pump Pad™ HP3232-8 is a 32 x 32 x 8 in base pad for heat pumps installed in snowy climates. Rather than the typical combination of an equipment pad and 6 in heat pump risers, the Heat Pump Pad™ provides a full 8 in of elevation in a square footprint. The star pattern of the integral risers allows for installation of equipment with different size footprints up to 32 in x 32 in. Risers are molded into the pad to form a solid single piece base.
