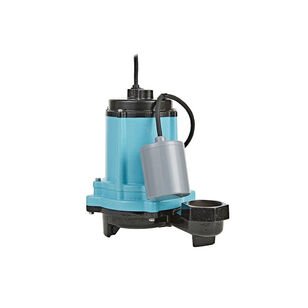

Little GIANT® 12E Series 12E-CIA-RF 512002 Effluent Pump, 115 V, 10 A, 60 Hz, 1/2 hp, 5 to 50 gpm, Cast Iron
MFG #512002
Item #1276206
Mfr. Part #512002
UPC #010121999367
Little GIANT® Effluent Pump, 12E Series, Model: 12E-CIA-RF, 115 V, 10 A, 1100 W Power, 60 Hz Frequency, HP Rating: 1/2 hp, 5 to 50 gpm Flow Rate, 1 ph, 2 in Discharge, 20 ft Cord Length, Maximum Feet of Head: 53 ft, Cast Iron Impeller, Dimensions: 10.6 in L x 9.45 in W, Cast Iron, Additional Information: Piggyback Mechanical Float Switch
ApplicationFor dewatering, water transfer and septic wastewater removal applications
Cord Length20
Dimensions10.6 " L x 9.45 " W
Discharge Size2
Flow Rate5 to 50
Frequency Rating60
HP Rating1/2
Impeller MaterialCast Iron
IndustryPlumbing
MaterialCast Iron
Maximum Feet of Head53
Model12E-CIA-RF
Phase1
Power Rating1100
Series12E Series
Voltage Rating115
Warranty36 Month
Shipping Dimensions (L x W x H)11.42" x 14.17" x 9.45"
Additional Information
cCSAus Certified
Features & Benefits
Heavy-duty epoxy-coated cast iron housing for high strength and heat dissipation
Designed for continuous-duty
Upper and lower ball bearings for long life
Energy-efficient PSC motor with thermal overload protection
Unique cloverleaf intake design allows higher flow with 3/4 in (19 mm) dia solids handling
Ideal for high head performance in vault applications while maintaining high flow and clog resistance using a cast iron non-clog impeller
Manual or automatic switch options for application flexibility
140 deg F maximum liquid temperature rating
