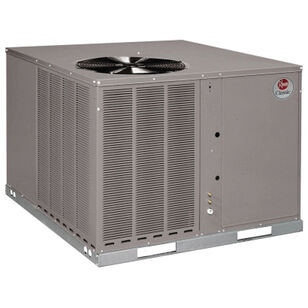

Rheem® Commercial Achiever® RACA14060CJT000AA Air Conditioner, 208/230 VAC, 39 A, 2000 cfm
Rheem® Commercial Achiever® RACA14060CJT000AA Air Conditioner, 208/230 VAC, 39 A, 2000 cfm
Rheem® Air Conditioner, Series: Commercial Achiever®, Model: RACA14, 208/230 VAC, 39 A, 5.14 kw, 1/3 hp Outdoor Fan, 1 hp Indoor Fan HP Rating, 60 Hz, 1 ph, Scroll Compressor, Downflow Configuration, 2000 cfm Rating, 1 Speed, Panel Mount, Direct Drive, Blower Motor, 3/4 in Connection, 1 x 24 x 30 in Filter, 47-1/2 in W x 41 in H x 52-7/16 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$13,117.80 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating39
CFM Rating2000
Compressor TypeScroll
ConfigurationDownflow
Connection Size3/4
Dimensions47-1/2 " W x 41 " H x 52-7/16 " D
Drive TypeDirect
Filter Size1 x 24 x 30
Frequency Rating60
HP Rating1/3 hp Outdoor Fan, 1 hp Indoor Fan
IndustryHVAC
ModelRACA14
Motor TypeBlower
Mounting TypePanel
Number of Speeds1
Phase1
SeriesCommercial Achiever
Voltage Rating208/230
Wattage5.14
Additional Information
AHRI Certified, cULus Listed, ENERGY STAR Certified, ISO 9001:2015
Features & Benefits
- All Models feature scroll compressors for maximum efficiency and quiet operation, 5 ton RGEA15 Models feature UltraTech™ scroll two-stage compressors with comfort Alert™ diagnostics, high/low pressure switches and hard start kits Louvered condenser compartment for protecting the coil against yard hazards and/or weather extremes One-piece top with a drip lip to help keep water off of the unit sides Supply and return air openings feature a 1 Inch H flange to prevent water migration into the ductwork Access panels have "weep holes" and channels to further help manage water run-off Easily accessible blower section complete with slide-out blower Externally mounted refrigerant connections are conveniently located for easy service diagnostics Micro channel evaporator and condenser delivers superior performance with less refrigerant charge and less weight than conventional copper tube/aluminum fin coils In addition the all aluminum construction has superior protection against formicary corrosion and aluminum tube rubbing potential Its easier to clean and has a more robust surface All units feature an internal trap on the condensate line eliminating the need for installing an on-site external trap Easily accessible control box Thermal expansion valve standard on all Models for superior superheat control, reliability and energy efficiency at all operating condition Solid core liquid line, filter drier standard on all Models Rugged base rails are included for improved installation and handling Molded compressor plug Complete factory charged, wired and run tested A double sloped evaporator coil drain pan assures all water is removed from the unit to improve indoor air quality 10 years limited warranty
Documents
Rheem® Commercial Achiever® RACA14060CJT000AA Air Conditioner, 208/230 VAC, 39 A, 2000 cfm
BrandRheem®
MFG #RACA14060CJT000AA
Keller #1276688
