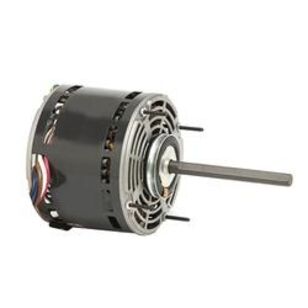

US Motors® 1268 Direct Drive Fan FHP Motor, 0.2 hp, 115 V, 60 Hz, 1 ph -Phase, 1075 rpm Speed
US Motors® 1268 Direct Drive Fan FHP Motor, 0.2 hp, 115 V, 60 Hz, 1 ph -Phase, 1075 rpm Speed
US Motors® Direct Drive Fan FHP Motor, 0.2 hp, 115 V, 3.4 A, 60 Hz, 1 ph, 1075 rpm Speed, 4 Speed, Open Enclosure, 0.5 in Dia x 3.84 in L Shaft, 1, Self-Aligning, 25.85 ft-oz Breakdown, 3.868 ft-oz Locked Rotor Torque, Hub/Stud Mount, 40 deg C Ambient, Class B, 4.906 in OAW, 8.988 in OAD, For Use With 370 V Capacitors, 0.2 kW Power, 6 Pole, CCW Rotation
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$0.32 / ea
In Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandPASCO
Additional Information0.2 kW Power, 6 Pole, CCW Rotation
Amperage Rating3.4
Bearing TypeSelf-Aligning
Enclosure TypeOpen
Frequency Rating60
HP Rating0.2
IndustryPlumbing
Insulation ClassClass B
Mounting TypeHub/Stud
Number of Speeds4
Overall Depth8.988
Overall Width4.906
Phase1
Service Factor1
Shaft Size0.5 " Dia x 3.84 " L
Speed Rating1075
Suitable For Use With370 V Capacitors
Temperature Rating40 deg C Ambient
Torque Rating25.85 '-oz Breakdown, 3.868 '-oz Locked Rotor
Voltage Rating115
Features & Benefits
- Reversible rotation Sleeve bearings have all angle thrust system Continuous-duty, air over 24 in line leads unless otherwise noted Automatic reset thermal overload protector Connection and capacitor information furnished in nameplate data Permanent split capacitor
US Motors® 1268 Direct Drive Fan FHP Motor, 0.2 hp, 115 V, 60 Hz, 1 ph -Phase, 1075 rpm Speed
BrandPASCO
MFG #1268
Keller #127811
My Part ##
Last Ordered#
$0.32 / ea
