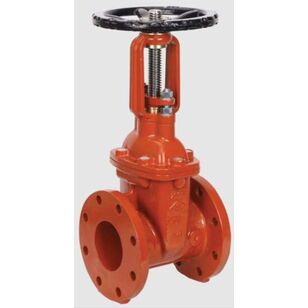

SCI® 35FW Series 017135FW080 Resilient Wedge Gate Valve, 8 in, Flanged, Ductile Iron, 300 lb CWP
SCI® 35FW Series 017135FW080 Resilient Wedge Gate Valve, 8 in, Flanged, Ductile Iron, 300 lb CWP
SCI® Resilient Wedge Gate Valve, 35FW Series, 8 in Nominal, Flanged Connection, 300 lb CWP, 11-1/2 in Inlet to Outlet Length, 38.38 in Top to Inlet Center, Ductile Iron Body, Stainless Steel Stem, Stainless Steel Trim, Brass Packing, EPDM Softgoods, Handwheel Operator, Material Standard: ASTM A536 65-45-12, ASTM B124 C37700, B584 , C89833, Contains Lead, Finish: Fusion Bonded Epoxy-Coated, 11-1/2 in W
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$4,053.60 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSCI®
Body MaterialDuctile Iron
Connection TypeFlanged
Dimensions11-1/2 " W
FinishFusion Bonded Epoxy-Coated
Inlet to Outlet Length11-1/2
Material StandardASTM A536 65-45-12, ASTM B124 C37700, B584 , C89833
Nominal Size8
Operator TypeHandwheel
Packing MaterialBrass
Pressure Rating300 lb CWP
Series35FW Series
Softgoods MaterialEPDM
Stem MaterialStainless Steel
Top to Inlet Center38.38
Trim MaterialStainless Steel
Additional Information
ANSI Specified|AWWA C515, C550 Specified|FM Approved|NSF 61, 372 Certified|UL Listed
Features & Benefits
- Wax encapsulated stainless cap screws Grooved stem for tamper switch Tapped and plugged for by-pass with additional bosses Outside screw and yoke (OS&Y)
SCI® 35FW Series 017135FW080 Resilient Wedge Gate Valve, 8 in, Flanged, Ductile Iron, 300 lb CWP
BrandSCI®
MFG #4349003840
Keller #1280526
My Part ##
Last Ordered#
$4,053.60 / ea
