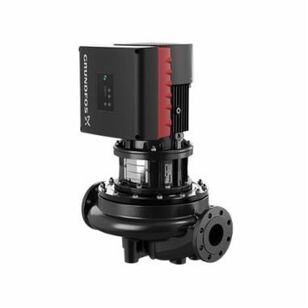

Grundfos TPE 1000 Series TPE 80-240/2 99430149 Circulator Pump, 156 gpm, 200-240 V, 7.9 to 6.6 A, 60 Hz, 3450 rpm Motor
Grundfos TPE 1000 Series TPE 80-240/2 99430149 Circulator Pump, 156 gpm, 200-240 V, 7.9 to 6.6 A, 60 Hz, 3450 rpm Motor
Grundfos Circulator Pump, TPE 1000 Series, Model: TPE 80-240/2, 156 gpm Flow Rate, 78.74 ft Maximum Head, 200-240 V, 7.9 to 6.6 A, 60 Hz, 145.04 psi Maximum Pressure, 3450 rpm Motor Speed Rating, 3 hp, 3 in Connection, ANSI Flanged Connection, 4 in Impeller Diameter, 3 ph Phase, 2 Poles, 5 to 284 deg F, IP55 Enclosure, Iron, 23.8 in H x 19 in W, Additional Information: F Insulation Class, 1-Stage, 1.12 in Dia x 2.62 in L Shaft Size, 182TC Frame Size, 100A Motor, Stainless Steel Impeller Material
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$9,502.00Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Documents
- Marketing Information
Attributes
BrandGrundfos
Additional InformationF Insulation Class, 1-Stage, 1.12 " Dia x 2.62 " L Shaft Size, 182TC Frame Size, 100A Motor, Stainless Steel Impeller Material
Amperage Rating7.9 to 6.6
Connection Size3
Connection TypeANSI Flanged
Dimensions23.8 " H x 19 " W
Enclosure TypeIP55
Flow Rate156
Frequency Rating60
HP Rating3
Impeller Diameter4
MaterialIron
Maximum Head78.74
Maximum Pressure145.04
ModelTPE 80-240/2
Motor Speed Rating3450
Number of Poles2
Phase3
SeriesTPE 1000 Series
Temperature Rating5 to 284
Voltage Rating200-240
Additional Information
AISI 304|ASTM Class 35|EN 1.4301/12756/GJL-250
Marketing Information
The pump is of the top pull out design, i.e. the power head (motor, pump head and impeller) can be removed for maintenance or service while the pump housing remains in the pipework. The pump is fitted with an unbalanced rubber bellows seal. The shaft seal is according to EN 12756. Pipework connection is via Class 125 ANSI flanges. The pump is fitted with a fan cooled, permanent magnet synchronous motor. The motor efficiency is classified as IE5 in accordance with IEC 60034-30-2. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement.
Grundfos TPE 1000 Series TPE 80-240/2 99430149 Circulator Pump, 156 gpm, 200-240 V, 7.9 to 6.6 A, 60 Hz, 3450 rpm Motor
BrandGrundfos
MFG #99430149
Keller #1281689
