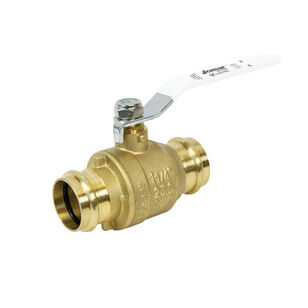

Jomar Valve® JP-150G Series 150-208G Ball Valve, 2 in, Press, Brass, 250 psi
Jomar Valve® JP-150G Series 150-208G Ball Valve, 2 in, Press, Brass, 250 psi
Jomar Valve® Ball Valve, JP-150G Series, 2 in Nominal, Press Connection, Full Port, 250 psi, 1.94 in Orifice, 6.49 in Inlet to Outlet Length, 3.03 in Top to Inlet Center, Brass Body, PTFE Seat, Brass Stem, Buna-N/EPDM/NBR Seal, PTFE Packing, Steel Handle, Brass Ball, Lead-Free, 250 deg F, 2 in L
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$296.52 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandJomar Valve®
Ball MaterialBrass
Body MaterialBrass
Connection TypePress
Dimensions2 " L
Handle MaterialSteel
Inlet to Outlet Length6.49
Nominal Size2
Orifice Size1.94
Packing MaterialPTFE
Port TypeFull
Pressure Rating250
Seal MaterialBuna-N/EPDM/NBR
Seat MaterialPTFE
SeriesJP-150G Series
Stem MaterialBrass
Temperature Rating250
Top to Inlet Center3.03
Additional Information
IAPMO PS 117|NSF 61-8/372/14
Features & Benefits
- Dezincification-resistant brass Gland follower and single O-ring stem design Blowout-proof stem 100% leak tested Wetted surface contain less than 0.25% lead content
Documents
Jomar Valve® JP-150G Series 150-208G Ball Valve, 2 in, Press, Brass, 250 psi
BrandJomar Valve®
MFG #150-208G
Keller #1282655
