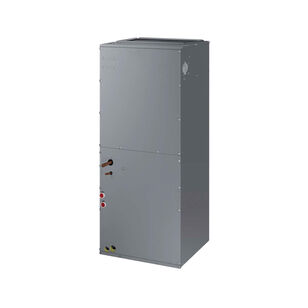

Samsung Eclipse Series AM030TNZDCH/AA Air Handler Unit, 30000 Btu/hr Cooling, 1053 cfm, 208-230 V, 2.08 A, 410 W, 1/2 hp
Samsung Eclipse Series AM030TNZDCH/AA Air Handler Unit, 30000 Btu/hr Cooling, 1053 cfm, 208-230 V, 2.08 A, 410 W, 1/2 hp
Samsung Air Handler Unit, DVM S Series, 30000 Btu/hr Cooling Capacity, 34000 Btu/hr Heating Capacity, 208-230 V Voltage Rating, 2.08 A Amperage Rating, 410 W Wattage, 1/2 hp Rating, 60 Hz Frequency Rating, 1 ph Phase, 1053 cfm Rating, Downflow Configuration, Connection Type: FNPT, R-410A Refrigerant Type, 42 dBA Sound Level, 10 A Fuse Rating, 3/4 in Connection, 3/8 in Liquid Line Size, 5/8 in Suction Line Size, 5 Number of Speeds, ECM Motor Type, Steel, Galvanized, 48 in H x 21 in W x 21 in D Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$5,073.84Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Amperage Rating2.08
CFM Rating1053
ConfigurationDownflow
Connection Size3/4
Connection TypeFNPT
Cooling Capacity30000
Dimensions48 " H x 21 " W x 21 " D
FinishGalvanized
Frequency Rating60
Fuse Rating10
Heating Capacity34000
HP Rating1/2
IndustryHVAC
Liquid Line Size3/8
MaterialSteel
Motor TypeECM
Number of Speeds5
Phase1
Refrigerant TypeR-410A
SeriesDVM S Series
Sound Level42
Suction Line Size5/8
Voltage Rating208-230
Wattage410
Additional Information
ASHRAE 193|cETLus Intertek Listed|UL 1995
Features & Benefits
- High voltage terminal block temperature sensor to disable unit in the event overheating of controls power connection Multi-position - vertical, horizontal left and horizontal right Capable of being field convertible to downflow configuration with optional downflow conversion kit Air handler has an air leakage of no more than 2% of the design airflow rate when tested in accordance with ASHRAE 193 The unit shall be constructed of insulated, powder-coated, galvanized steel The heat exchanger shall be mechanically bonded fin to copper tube Indoor fan is a double inlet, forward curve, centrifugal type with a single constant torque (ECM) fan motor Five fan speed taps for optional airflow setting during installation The indoor unit shall have the capability to turn the fan Off in heating or cooling modes while in thermal-off status (external sensor required)
