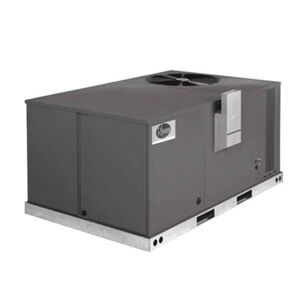

Rheem® RKNL-G240CS40EBGK Package Gas Electric Unit, 400000 Btu/hr Input, 324000 Btu/hr Output, 20 ton, 208 to 230 V
Rheem® RKNL-G240CS40EBGK Package Gas Electric Unit, 400000 Btu/hr Input, 324000 Btu/hr Output, 20 ton, 208 to 230 V
Rheem® Package Gas Electric Unit, Commercial Classic® RKNL-G Series, G240CS40E Model, 400000 Btu/hr Input BTU Rating, 324000 Btu/hr Output BTU Rating, 208 to 230 V Voltage Rating, 109 A Amperage Rating, 21.11 kW Wattage, 5 hp Rating, 1075 rpm Rotational Speed, 60 Hz Frequency Rating, 3 ph Phase, Scroll Compressor Type, 8000 cfm Rating, 14 IEER Rating, 10.8 EER Rating, 20 ton Tonnage, 14 Number of Burners, 2 Number of Stages, R-410A Refrigerant Type, 91 dB Decibel Rating, Spark Ignition Type, Direct Drive Type, 3/4 in Connection, 1 in Drain Connection, 2 x 25 x 20 in Filter Size, 125 A Fuse Rating, 81 % Steady State Efficiency, Steel, Galvanized/Powder Painted, 25 to 55 deg F Temperature Rating, 85-29/32 in L x 53 in H Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$94,575.11 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRheem®
Amperage Rating109
ApplicationFor low temperature use
CFM Rating8000
Compressor TypeScroll
Connection Size3/4
Decibel Rating91
Dimensions85-29/32 " L x 53 " H
Drain Connection1
Drive TypeDirect
EER Rating10.8
Filter Size2 x 25 x 20
FinishGalvanized/Powder Painted
Frequency Rating60
Fuse Rating125
HP Rating5
IEER Rating14
Ignition TypeSpark
IndustryHVAC
Input BTU Rating400000
MaterialSteel
ModelG240CS40E
Number of Burners14
Number of Stages2
Output BTU Rating324000
Phase3
Refrigerant TypeR-410A
Rotational Speed1075
SeriesCommercial Classic RKNL-G Series
Steady State Efficiency81
Temperature Rating25 to 55
Tonnage20
Voltage Rating208 to 230
Wattage21.11
Additional Information
AHRI Certified, ASHRAE 90.1-2010 Compliant, C/US UL Listed, Energy Star Certified
Features & Benefits
- There are single point electrical and gas connections on all models Solid core liquid line filter drier on each circuit Rugged base rails are included for improved installation and handling Complete factory charged, wired and run tested Cooling operation up to 125 deg F ambient Convertible airflow - vertical downflow or horizontal side flow TXV refrigerant metering system on each circuit High pressure and low pressure/loss of charge protection standard on all models 2 in filter standard with slide out design Two-stage gas valve, direct spark ignition and induced draft for efficiency and reliability Solid state furnace control with on board diagnostics 24 V control system with resettable circuit breakers Colored and labeled wiring Capillary tube refrigerant metering system on each circuit
Documents
Marketing Information
RLNL-G units also feature HumidiDry™, the Rheem® exclusive dehumidification package unit solution. HumidiDry® delivers maximum humidity control without compromising desired temperature set point for a high degree of comfort by delivering dry neutral air when in the dehumidification mode. The HumidiDry® rooftop maintains humidity levels even when there's little or no demand for air conditioning.
Rheem® RKNL-G240CS40EBGK Package Gas Electric Unit, 400000 Btu/hr Input, 324000 Btu/hr Output, 20 ton, 208 to 230 V
BrandRheem®
MFG #RKNL-G240CS40EBGK
Keller #1283243
My Part ##
Last Ordered#
$94,575.11 / ea
