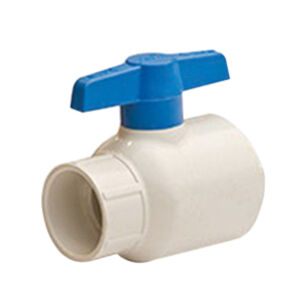

SPEARS 2622-010 1IN PVC 1PC SOCKET BV
SPEARS 2622-010 1IN PVC 1PC SOCKET BV
Spears® Utility Ball Valve, 1 in Nominal, Socket Connection, 150 psi, Water Media, 3-3/8 in Inlet to Outlet Length, 2-3/8 in Top to Inlet Center, Handle Operator, 160 Cv Flow Coefficient (Cv), Material Standard: ASTM D1784-12454, PVC Body, HDPE/PTFE Seat, HDPE/PTFE Trim, Polypropylene Handle, HDPE/PTFE Softgoods, White, 73 deg F, 3-3/8 in L, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$33.28 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSpears®
ApplicationFor use in potable water service
Body MaterialPVC
ColorWhite
Connection TypeSocket
Dimensions3-3/8 " L
Domestic/ImportDomestic
Flow Coefficient (Cv)160
Handle MaterialPolypropylene
IndustryPlumbing
Inlet to Outlet Length3-3/8
Material StandardASTM D1784-12454
MediaWater
Nominal Size1
Operator TypeHandle
Pressure Rating150
Seat MaterialHDPE/PTFE
Softgoods MaterialHDPE/PTFE
Temperature Rating73
Top to Inlet Center2-3/8
Trim MaterialHDPE/PTFE
Additional Information
NSF Certified
Features & Benefits
- Chemical and corrosion-resistant PVC or CPVC construction Economical sealed unit Spears® single O-ring Safe-T-Shear® stem design PTFE/HDPE floating seat design Assembled with silicone-free, water soluble lubricant
Documents
Marketing Information
A high-quality, economical 1/4-turn shut-off valve designed for irrigation, pool and spa and general-purpose applications. IPS® sizes 1/2 to 2 in available in PVC white, PVC gray or CPVC with socket or threaded end connectors. Sizes 3 to 4 in available in PVC white with socket or threaded end connectors. 6 in size available in PVC white with socket end connectors and high-efficiency lever-style handle for easier operation.
SPEARS 2622-010 1IN PVC 1PC SOCKET BV
BrandSpears®
MFG #2622-010
Keller #128353
