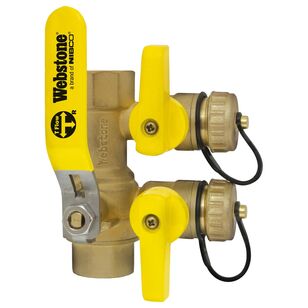

WEBSTONE H-48615 1-1/4 BL VLV
WEBSTONE H-48615 1-1/4 BL VLV
Webstone Purge & Fill™, 48615, Ball Valve, Series: 4861, 1-1/4 in Nominal, IPS End Style, 600 psi CWP Pressure, 100 deg F, Full Port, Media: Glycol Mixture/Oil/Water, Reversible Handle Actuator, 4-7/8 in Inlet to Outlet Length, 2-7/8 in Top to Inlet Center, Forged Brass Body, Bass/PTFE Trim, PTFE Softgoods, Import
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$184.30 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Marketing Information
Attributes
BrandWebstone
Actuator TypeReversible Handle
Body MaterialForged Brass
ColorBrass
Domestic/ImportImport
End StyleIPS
Inlet to Outlet Length4-7/8"
MediaGlycol Mixture/Oil/Water
Nominal Size1-1/4"
Port TypeFull
Pressure Rating600 psi CWP
Series4861
Softgoods MaterialPTFE
Temperature Rating100
Top to Inlet Center2-7/8"
Trim MaterialBass/PTFE
Additional Information
ANSI B1.20.1|ISO 9001|ANSI B1.20.1|PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Features & Benefits
- Replace seven component PTFE seal/seat Specifically designed for filling and draining glycol/anti-freeze from any point in a hydronic system Eliminate six leak path Patented technology Simultaneously drain, flush and refill any hydronic, solar or closed loop system Ball valve with integral spring check saves labor, space, and leak paths Replaces 7 components, eliminates 6 leak paths, saves 54 min of labor With (2) hi-flow hose drains, reversible handle and adjustable packing gland T-pattern flow path quickly and easily prevents the flow between the two hose connections This valve is actuated by a blow-out proof stem As fluid is introduced into the system, the existing fluid or air is diverted out of the system through the remaining hose connection
Marketing Information
Suitable for residential, commercial or industrial use with water or oil, this valve was specifically designed for filling and draining glycol/antifreeze from any point in a hydronic system. This approved Webstone valve is actuated by a blowout proof stem and features an adjustable packing gland. Threaded ends comply with ANSI B1.20.1.
WEBSTONE H-48615 1-1/4 BL VLV
BrandWebstone
MFG #H-48615
Keller #1284240
My Part ##
Last Ordered#
$184.30 / ea
