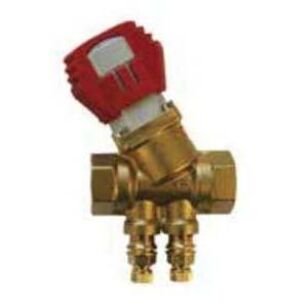

Bell & Gossett Circuit Sentry™ Flo-Setter™ II FS-2 117638 Circuit Balancing Valve, 2 in, FNPT, 3.96 to 45.57 gpm, Iron
Bell & Gossett Circuit Sentry™ Flo-Setter™ II FS-2 117638 Circuit Balancing Valve, 2 in, FNPT, 3.96 to 45.57 gpm, Iron
Bell & Gossett Circuit Sentry™ Flo-Setter™ II Circuit Balancing Valve, Model: FS-2, 2 in Nominal, FNPT Connection, 3.96 to 45.57 gpm Flow Rate, 375 psig, Iron, 5.4 in Inlet to Outlet Length, 5.1 in Top to Inlet Center, Lead-Free, 14 to 248 deg F, 5.4 in L x 3.6 in W x 8.1 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$732.94 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandBell & Gossett
Connection TypeFNPT
Dimensions5.4 " L x 3.6 " W x 8.1 " H
Flow Rate3.96 to 45.57
Inlet to Outlet Length5.4
MaterialIron
ModelFS-2
Nominal Size2
Pressure Rating375
Temperature Rating14 to 248
Top to Inlet Center5.1
Features & Benefits
- The unique GPM dial is easy to set Maintains the set flow rate within +/-5% regardless of pressure fluctuations in the system Saves pump energy and improves coil efficiency Easy to install and lockable handle allows simple adjustment to design or required flow rate should specifications change Minimized commissioning time due to automatic balancing of the system No minimum straight pipe lengths required before or after the valve Integrated pressure / temperature ports to easily measure differential pressure and temperature Large open flow paths for clog-free operation Integral class IV shut-off / isolation capability
Documents
Marketing Information
The Circuit Sentry Flo-Setter II valve is a field adjustable pressure independent flow limiter that maintains set flow rates regardless of pressure fluctuations in the system; eliminates overflow.
