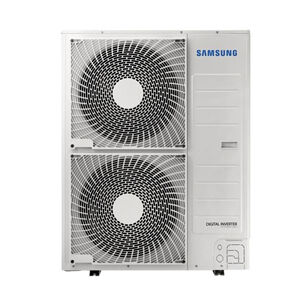

Samsung Hylex™ AC060BXUPCH/AA Inverter Driven Heat Pump Condensing Unit, 208 to 230 V, 33.2 A, 1 ph, Steel
Samsung Hylex™ AC060BXUPCH/AA Inverter Driven Heat Pump Condensing Unit, 208 to 230 V, 33.2 A, 1 ph, Steel
Samsung Hylex™ Inverter Driven Heat Pump Condensing Unit, 208 to 230 V, 33.2 A, 125 W, 60 Hz, 1 ph, 3 Fan Speeds, 14000 to 65000 Btu/hr Heating, 17700 to 59000 Btu/hr Cooling, 4414 cfm Heating CFM Rating, 4414 cfm Cooling CFM Rating, 9 EER Rating, 17.5 SEER, 10.5 HSPF, Twin BLDC Rotary Compressor, R-410A Refrigerant, 3/8 in Liquid Line, 3/4 to 1-1/8 in Suction Line, 40 A Fuse Rating, Inverter Drive, 58 dB Heating Sound Level, 56 dB Cooling Sound Level, Steel, Baked-On Powder-Coated/Galvanized, -13 to 75 deg F Heating Operating Temperature, 23 to 125 deg F Cooling Operating Temperature, 37 in Overall Width, 55-15/16 in Overall Height, Additional Information: 13 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$7,203.60 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Additional Information13 " D
Amperage Rating33.2
Compressor TypeTwin BLDC Rotary
Cooling BTU Rating17700 to 59000
Cooling CFM Rating4414
Cooling Operating Temperature23 to 125
Cooling Sound Level56
Drive TypeInverter
EER Rating9
FinishBaked-On Powder-Coated/Galvanized
Frequency Rating60
Fuse Rating40
Heating BTU Rating14000 to 65000
Heating CFM Rating4414
Heating Operating Temperature-13 to 75
Heating Sound Level58
HSPF Rating10.5
IndustryHVAC
Liquid Line Size3/8
MaterialSteel
Number of Fan Speeds3
Overall Height55-15/16
Overall Width37
Phase1
Power Rating125
Refrigerant TypeR-410A
SEER Rating17.5
Suction Line Size3/4 to 1-1/8
Voltage Rating208 to 230
Warranty10 Year Conditional Compressor and Parts
Additional Information
AHRI 210/240|cCSAus Certified|ENERGY STAR Certified|UL 60335-2-40
Features & Benefits
- Inverter driven heat pump condensing unit compatible with air handling units and A coils with a thermostatic expansion valve 100% rated heating capacity at 5 deg F outside temperature (refer to capacity tables in outdoor unit technical data book for full capacity details) Soft start compressor minimizing current inrush Base pan heater equipped as standard The condensing unit heat exchanger salt spray test method ISO 9227 The heat exchanger showed no unusual rust or corrosion development to 3000 hr The system (outdoor unit with MXD-U000XN AHU control unit) shall provide three-fan speed control of the indoor unit increasing performance and dehumidification Refrigerant pipe connections and service ports are located inside the heat pump cabinet Refrigerant pipes can enter the cabinet on the front, side, back or bottom Requires MXD-U000XN AHU control unit (purchased separately) installed near the indoor unit for operation Control wiring shall be 2 x 18 AWG Compatible with standard 24 V thermostats Requires B reversing valve signal (24 V energized for heating) The compressor shall be hermetically sealed, inverter controlled, BLDC rotary The outdoor unit heat exchanger shall be mechanically bonded aluminum fin to copper tube Uses traditional unitary line sets (liquid pipe does not require insulation) Flexible pipe diameter compatibility (three suction pipe diameter options) Refrigerant flow shall be controlled by an electronic expansion valve in the outdoor unit for heating operation Refrigerant flow for cooling shall be controlled via thermostatic Expansion valve (TXV) at the indoor coil (bleed or non-bleed)
