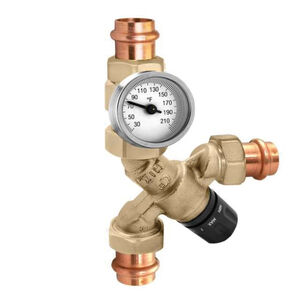

Caleffi 520 Series 520516A Mixing Valve With Temperature Gauge, 3/4 in, Press, 0.5 gpm, 75 psi
Caleffi 520 Series 520516A Mixing Valve With Temperature Gauge, 3/4 in, Press, 0.5 gpm, 75 psi
Caleffi Mixing Valve With Temperature Gauge, 520 Series, 3/4 in Nominal, Press Connection, Number of Ports/Ways: 3-Ways, 0.5 gpm Flow Rate, 75 psi, 2 Cv Flow Coefficient (Cv), Knob Operator, ABS Handle, Stainless Steel Trim, PSU Seat, EPDM Seal, Brass, +/-3 deg F Gauge Accuracy, Water Media, 30 to 210 deg F Gauge Scale, Thermostatic Valve, Contains Lead, 195 deg F, 8 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$313.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandCaleffi
Connection TypePress
Dimensions8 " H
Flow Coefficient (Cv)2
Flow Rate0.5
Gauge Accuracy+/-3
Gauge Scale30 to 210
Handle MaterialABS
MaterialBrass
MediaWater
Nominal Size3/4
Number of Ports/Ways3-Ways
Operator TypeKnob
Pressure Rating75
Seal MaterialEPDM
Seat MaterialPSU
Series520 Series
Temperature Rating195
Trim MaterialStainless Steel
Valve TypeThermostatic
Additional Information
ASSE 1017|CSA B125.3|NSF/ANSI 372
Features & Benefits
- Reduces installation labor and materials because the hot inlet port is in line with mixed outlet port, eliminating a piping elbow as required using standard mixing valves 0.5 gpm minimum flow for stable control for today's high efficiency fixtures Eliminates "temperature creep" in domestic water recirculation systems Inhibits scaling on internal sliding surfaces, assuring stable temperature control and long life Local temperature indication, convenient drywell design Fine threads for smooth knob adjustment and accurate setting
Marketing Information
The Caleffi AngleMix™ is the industry's only thermostatic mixing valve with an angle-style body. This configuration minimizes the use of elbow fittings for reduced installation time and cost. The AngleMix™ delivers precise mixed temperature stability as low as 0.5 gpm for today's high efficiency fixtures. In domestic recirculation systems, the tight inlet close-off performance prevents temperature creep without the need for return water balancing valves.
Caleffi 520 Series 520516A Mixing Valve With Temperature Gauge, 3/4 in, Press, 0.5 gpm, 75 psi
BrandCaleffi
MFG #520516A
Keller #1287816
