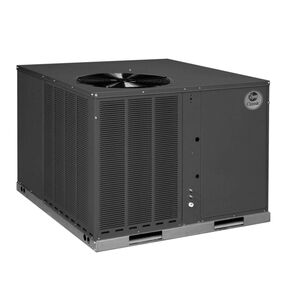

Rheem® Commercial Classic® RACA15 SEER Series RACA15036BJT101AA Package Air Conditioner, 36000 Btu/hr Nominal, 24 A
Rheem® Commercial Classic® RACA15 SEER Series RACA15036BJT101AA Package Air Conditioner, 36000 Btu/hr Nominal, 24 A
Rheem® Package Air Conditioner, Series: Commercial Classic® RACA15 SEER Series, 36000 Btu/hr Nominal Capacity, 36000 Btu/hr Cooling, 10 kW Heating, 35000 Btu/hr Cooling BTU Rating, 208 to 230 V, 24 A, 2.93 kW, 1/3 hp Rating, 1075 rpm Rotational Speed, 60 Hz, 1 ph, Scroll Compressor, 2700 cfm Rating, 12 EER, 15 SEER, 1 Speed, 2 Stage, 76 dB, Direct Drive, 3/4 in Connection, 1 x 24 x 24 in Filter, 35 A Fuse, Non-Communicating Control, 95 deg F, 47-19/32 in L x 50-13/16 in W x 52-7/16 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$13,410.02 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating24
CFM Rating2700
Compressor TypeScroll
Connection Size3/4
Control TypeNon-Communicating
Cooling BTU Rating35000
Cooling Capacity36000
Dimensions47-19/32 " L x 50-13/16 " W x 52-7/16 " H
Drive TypeDirect
EER Rating12
Filter Size1 x 24 x 24
Frequency Rating60
Fuse Rating35
Heating Capacity10
HP Rating1/3
IndustryHVAC
Nominal Capacity36000
Number of Speeds1
Number of Stages2
Phase1
Rotational Speed1075
SEER Rating15
SeriesCommercial Classic RACA15 SEER Series
Sound Level76
Temperature Rating95
Voltage Rating208 to 230
WarrantyLimited
Wattage2.93
Additional Information
AHRI Certified|cULus Listed|ENERGY STAR Certified
Features & Benefits
- All models feature scroll compressors for maximum efficiency and quiet operation The 5 ton RACA14/15 models features scroll UltraTech™ two-stage compressors with Comfort Alert® diagnostics, high/low pressure switches and hard start kit Louvered condenser compartment for protecting the coil against yard hazards and/or weather extremes One-piece top with a drip flange to help keep water out of the unit Drawn supply and return air openings feature a 1 in tall flange to prevent water migration into the ductwork Access panels have weep holes and channels to further help manage water run off Easily accessible blower section complete with slide out blower Refrigerant connections are conveniently located for easy service diagnostics MicroChannel evaporator and condenser delivers superior performance with less refrigerant charge and less weight than conventional copper tube/aluminum fin coils In addition the all aluminum construction has superior protection against formicary corrosion and aluminum tube rubbing potential It is easier to clean and has a more robust surface Easily accessible control box Thermal expansion valve is standard on all models and provides superior superheat control, reliability and energy efficiency at all operating conditions Solid core liquid line Filter drier standard on all models Rugged base rails are included for improved installation and handling Molded compressor plug Complete factory charged, wired and run tested A double sloped evaporator coil drain pan assures all water is removed from the unit to improve indoor air quality
Documents
Rheem® Commercial Classic® RACA15 SEER Series RACA15036BJT101AA Package Air Conditioner, 36000 Btu/hr Nominal, 24 A
BrandRheem®
MFG #RACA15036BJT101AA
Keller #1287990
My Part ##
Last Ordered#
$13,410.02 / ea
