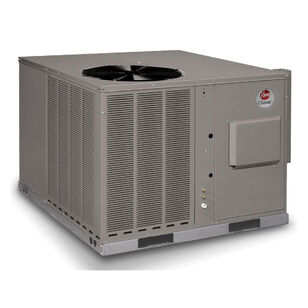

Rheem® Endeavor™ RGEAZR030AJT081NA Standard iR Gas/Electric Package Unit, 80000 Btu/hr Input, 208 to 230 V
Rheem® Endeavor™ RGEAZR030AJT081NA Standard iR Gas/Electric Package Unit, 80000 Btu/hr Input, 208 to 230 V
Rheem® Standard iR Gas/Electric Package Unit, RGEAZR Classic® Series, 030AJT081/X Model, 80000 Btu/hr Input BTU Rating, 208 to 230 V Voltage Rating, 60 Hz Frequency Rating, 1 ph Phase, Scroll Compressor Type, 10.6 EER Rating, 13.4 SEER Rating, R-410A Refrigerant Type, Constant Torque Drive Type, 35-15/16 in H x 47-9/16 in W x 52-7/16 in D Dimensions, 30000 Btu/hr Capacity, ResiPack Convertible Platform, 1-Stage Gas Heat Configuration Additional Information
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$13,083.49 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Additional Information30000 Btu/hr Capacity, ResiPack Convertible Platform, 1-Stage Gas Heat Configuration
Compressor TypeScroll
Dimensions35-15/16 " H x 47-9/16 " W x 52-7/16 " D
Drive TypeConstant Torque
EER Rating10.6
Frequency Rating60
IndustryHVAC
Input BTU Rating80000
Model030AJT081/X
Phase1
Refrigerant TypeR-410A
SEER Rating13.4
SeriesRGEAZR Classic Series
Voltage Rating208 to 230
Warranty10 Year Heat Exchanger, 5 Year Compressor, 1 Year Parts
Additional Information
AHRI 210/240-2023|cULus Listed|Energy Guide Certified
Features & Benefits
- All models feature scroll compressors for maximum efficiency and quiet operation Louvered condenser compartment for protecting the coil against yard hazards and/or weather extremes One-piece top with a drip flange to help keep water out of the unit Supply and return air openings feature a 1 in tall flange to prevent water migration into the ductwork Access panels have "weep holes" and channels to further help manage water run-off Easily accessible blower section complete with slide-out blower Refrigerant connections are conveniently located for easy service diagnostics MicroChannel evaporator and condenser delivers superior performance with less refrigerant charge and less weight than conventional copper tube/aluminum fin coils In addition the all aluminum construction has superior protection against formicary corrosion and aluminum tube rubbing potential It is easier to clean and has a more robust surface Inside the easily accessible furnace compartment is the draft inducer motor This motor is specially designed for quiet reliable operation In addition to the draft inducer motor, the in shot gas burners and manifold efficiently regulate the flow of gas for combustion These gas/electric units also feature direct spark ignition and remote flame sensors for added reliability and efficiency Easily accessible control box Single-point wiring simplifies installation Our gas/electric package units feature a tubular heat exchanger design Thermal expansion valve standard on all models for superior superheat control, reliability and energy efficiency at all operating conditions Rugged base rail included for improved installation and handling Complete factory charged, wired and run tested
Documents
Rheem® Endeavor™ RGEAZR030AJT081NA Standard iR Gas/Electric Package Unit, 80000 Btu/hr Input, 208 to 230 V
BrandRheem®
MFG #RGEAZR030AJT081NA
Keller #1288076
My Part ##
Last Ordered#
$13,083.49 / ea
