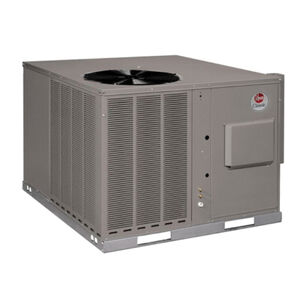

Rheem® Line Select™ Series RGEA14036AJT061ACAJA Gas/Electric Package Unit, 60000 Btu/hr Input, 48000 Btu Output, 24 A
Rheem® Line Select™ Series RGEA14036AJT061ACAJA Gas/Electric Package Unit, 60000 Btu/hr Input, 48000 Btu Output, 24 A
Rheem® Gas/Electric Package Unit, RGEA14, Classic® Series, 036AJT061AC Model, 60000 Btu/hr Input BTU Rating, 48000 Btu Output BTU Rating, 208 to 230 V Voltage Rating, 24 A Amperage Rating, 2.93 kW Wattage, 1 hp Rating, 3450 rpm Rotational Speed, 60 Hz Frequency Rating, 1 ph Phase, Scroll Compressor Type, 1200 cfm Rating, 11 EER Rating, 14 SEER Rating, 81 % AFUE Rating, 3 Number of Burners, 1 Number of Stages, 76 dB Decibel Rating, Direct Spark Ignition Type, Constant Torque Drive Type, 12 x 9T Blower Size, 1/2 in Connection, Connection Type: Drain, 3/4 in Drain Connection, 1 x 24 x 24 in Filter Size, 35 A Fuse Rating, 82 % Steady State Efficiency, Stainless Steel, 40 to 70 deg F Temperature Rating, 35-15/16 in H x 47-9/16 in W x 50-13/16 in D Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$12,782.62 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
AFUE Rating81
Amperage Rating24
ApplicationFor residential applications
Blower Size12 x 9T
CFM Rating1200
Compressor TypeScroll
Connection Size1/2
Connection TypeDrain
Decibel Rating76
Dimensions35-15/16 " H x 47-9/16 " W x 50-13/16 " D
Drain Connection3/4
Drive TypeConstant Torque
EER Rating11
Filter Size1 x 24 x 24
Frequency Rating60
Fuse Rating35
HP Rating1
Ignition TypeDirect Spark
IncludesRugged Baserail
IndustryHVAC
Input BTU Rating60000
MaterialStainless Steel
Model036AJT061AC
Number of Burners3
Number of Stages1
Output BTU Rating48000
Phase1
Rotational Speed3450
SEER Rating14
SeriesRGEA14, Classic Series
Steady State Efficiency82
Temperature Rating40 to 70
Voltage Rating208 to 230
WarrantyLimited Lifetime
Wattage2.93
Additional Information
AHRI Certified, C/US UL Listed, Energy Guide
Features & Benefits
- Feature scroll compressors for maximum efficiency and quiet operation Louvered condenser compartment for protecting the coil against yard hazards and/or weather extremes One-piece top with a deep flange to help keep water out of the unit Supply and return air openings feature a 1 in tall flange to prevent water migration into the ductwork Access panels have weep holes and channels to further help manage water run off Easily accessible blower section complete with slide out blower Refrigerant connections are conveniently located for easy service diagnostics MicroChannel evaporator and condenser delivers superior performance with less refrigerant charge and less weight than conventional copper tube/aluminum fin coils Its easier to clean and has a more robust surface Inside the easily accessible furnace compartment is the draft inducer motor This motor is specially designed for quiet reliable operation In addition to the draft inducer motor, the in shot gas burners and manifold efficiently regulate the flow of gas for combustion These new gas/electric units also feature direct spark ignition and remote flame sensors for added reliability and efficiency All units feature an internal trap on the condensate line eliminating the need for installing an on site external trap Easily accessible control box Single point wiring simplifies installation Our gas/electric package units feature a tubular heat exchanger design Tubular heat exchangers are more efficient and durable than older-style clamshell heat exchangers Thermal expansion valve is standard on all models and provides superior superheat control, reliability and energy efficiency at all operating conditions Filter drier standard on all models
