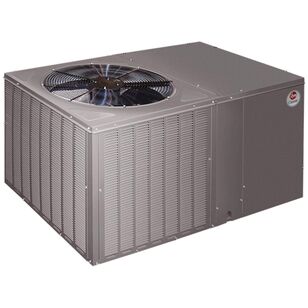

Rheem® RQPM-A049JK015 Heat Pump Package Unit, 4 ton Nominal, 42000 Btu/hr Heating, 208/230 VAC, 36 A, 1600 cfm
Rheem® RQPM-A049JK015 Heat Pump Package Unit, 4 ton Nominal, 42000 Btu/hr Heating, 208/230 VAC, 36 A, 1600 cfm
Rheem® Heat Pump Package Unit, RQPM-A, Classic Series, A049JK Model, 4 ton Nominal Capacity, 49000 Btu/hr Cooling BTU Rating, 42000 Btu/hr Heating BTU Rating, 208/230 VAC Voltage Rating, 36 A Amperage Rating, 1/3 hp Condenser, 3/4 hp Blower Motor HP Rating, 60 Hz Frequency Rating, 1 ph Phase, 908 to 1050 rpm Rotational Speed, Scroll Compressor Type, 1600 cfm Rating, 14 SEER Rating, 8 HSPF Rating, 12 EER Rating, R-410A Refrigerant Type, 1 Number of Stages, 50 A Fuse Rating, 78 dBA Sound Level, Outdoor Coil - 16.54 sq-ft Face Area, 22 Fins/in, Indoor Coil - 5.78 sq-ft Face Area, 13 Fins/in Coil Rating, 15 kW Resistance Heat, Galvanized Steel, Powder-Painted, 74-1/2 in W x 33 in D x 37-1/8 in H Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$14,495.80 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating36
CFM Rating1600
Coil RatingOutdoor Coil - 16.54 sq-' Face Area, 22 Fins/", Indoor Coil - 5.78 sq-' Face Area, 13 Fins/"
Compressor TypeScroll
Cooling BTU Rating49000 Btu/hr Cooling
Dimensions74-1/2 " W x 33 " D x 37-1/8 " H
EER Rating12
FinishPowder-Painted
Frequency Rating60
Fuse Rating50
Heating BTU Rating42000 Btu/hr Heating
HP Rating1/3 hp Condenser, 3/4 hp Blower Motor
HSPF Rating8
IndustryHVAC
MaterialGalvanized Steel
ModelA049JK
Nominal Capacity4
Number of Stages1
Phase1
Refrigerant TypeR-410A
Resistance Heat15
Rotational Speed908 to 1050
SEER Rating14
SeriesRQPM-A, Classic
Sound Level78
Voltage Rating208/230
Additional Information
AHRI Certified, C/US UL Listed, ISO 9001:2008 Certified
Features & Benefits
- Design Series Future technical variations Direct drive package RQPM Series of package heat pumps are designed to be the most efficient, quickest to install, easiest to service and most reliable units in the industry Starting at the bottom, the base rails allow for separation between the unit base and the ground level, protecting the base from ground moisture and providing air circulation around the unit Constructed from sturdy 18 ga G90 sheet metal, the base rails also allow for easier maneuverability during installation Unit can be installed flush to the structure without blocking air flow over the outdoor coil or making any screws inaccessible for maintenance Full-louver coil protection makes Rheem unique in the industry and also totally protects the outdoor coil from vandalism and weather extremes Two-round 14 in duct collar are included with the unit, which makes attaching duct a snap The outdoor-section top cover is easily removed to allow access to the scroll compressor, outdoor fan motor and refrigerant tubing The controls are located in a large, easy-to-access control box which provides plenty of space in which to troubleshoot The indoor-section top cover also easily opens to access the removable blower housing and motor High and low pressure can easily and accurately be measured using the 2 ga ports located inside the control box A small side panel grants access to a removable, sloped drain pan which helps to ensure indoor air quality (IAQ) through-out the life of the unit Foil faced insulation is securely glued and captured to the cabinet On the base of the unit, closed-cell insulation is used to prevent moisture from being absorbed and help reduce mold content to provide better indoor air quality For reliability and long-lasting operation, Rheem uses 100% scroll compressor technology on all package platforms Low pressure control standard on all models
