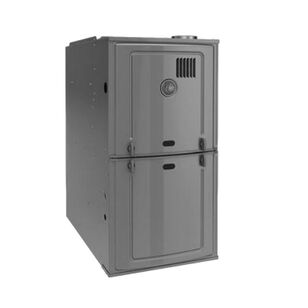

Rheem® R801VA100521MUA Variable Speed Multi-Position Gas Furnace, 5 ton, 100000 Btu/hr Input BTU, 115 V, 1772 cfm, Steel
Rheem® R801VA100521MUA Variable Speed Multi-Position Gas Furnace, 5 ton, 100000 Btu/hr Input BTU, 115 V, 1772 cfm, Steel
Rheem® Variable Speed Multi-Position Gas Furnace, Classic Plus® Series, 100000 Btu/hr Input BTU Rating, 80000 Btu/hr Output BTU Rating, 115 V Voltage Rating, 1772 cfm Rating, 3/4 hp HP Rating, 80 % AFUE Rating, 560 W Wattage, 1 ph Phase, 60 Hz Frequency Rating, 1 Number of Stages, Horizontal, Upflow Configuration, Connection Type: NPT, 1/2 in Connection, Natural Gas Fuel Type, 6 in W x 11 in D Blower Size, 21 in W Cabinet Dimensions, ECM Motor Type, Vent Vent, Ducted or Ductless, 6 in Vent Size, 14 A Fuse Rating, 5 ton Tonnage, PlusOne® Ignition System, Direct Spark Ignition Type, Steel, Aluminized, 35 to 65 deg F Temperature Rise
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$5,882.47 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
AFUE Rating80
Blower Size6 " W x 11 " D
Cabinet Dimensions21 " W
CFM Rating1772
Color/FinishAluminized
ConfigurationHorizontal, Upflow
Connection Size1/2
Connection TypeNPT
FinishAluminized
Frequency Rating60
Fuel TypeNatural Gas
Fuse Rating14
HP Rating3/4
Ignition SystemPlusOne
Ignition TypeDirect Spark
IndustryHVAC
Input BTU Rating100000
MaterialSteel
Motor TypeECM
Number of Stages1
Output BTU Rating80000
Phase1
SeriesClassic Plus Series
Temperature Rise35 to 65
Tonnage5
Vent Size6
Voltage Rating115
WarrantyLimited
Wattage560
Additional Information
AHRI Certified|CSA Certified|ENERGY STAR Certified
Features & Benefits
- Certified unit meets 14 ng/j NOx emission standard Environmentally friendly and responsible product that reduces NOx emissions by 65% 80% residential gas furnace CSA certified Three-way multi-poise design UF/HZ PlusOne® diagnostics - seven-segment LED all units PlusOne® ignition system - DSI for reliability and longevity Heat exchanger is removable for improved serviceability Stainless steel construction provides maximum corrosion resistance and thermal fatigue reliability Solid doors provide quiet operation Solid bottom Insulated blower compartment Low profile 34 in cabinet ideal for space constrained installations Blower shelf design - serviceable in all furnace orientations Hemmed edges on cabinet and doors 1/4 turn door knobs for tool less access Integrated control board features dip switches for easy system setup QR code for quick access to product information from your smart phone or tablet ECM motor provides constant CFM for single and two-stage cooling and heat pump products Cabinet air leakage less than 2% at 1 in H2O when tested in accordance with ASHRAE standard 193
Rheem® R801VA100521MUA Variable Speed Multi-Position Gas Furnace, 5 ton, 100000 Btu/hr Input BTU, 115 V, 1772 cfm, Steel
BrandRheem®
MFG #R801VA100521MUA
Keller #1288474
My Part ##
Last Ordered#
$5,882.47 / ea
