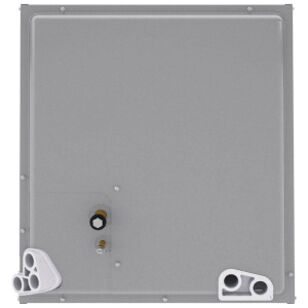

Russell Vantix™ TCFZ Series TCFZ4824STANMC Furnace Coil, 48000 Btu/hr BTU, Sweat, Aluminum
Russell Vantix™ TCFZ Series TCFZ4824STANMC Furnace Coil, 48000 Btu/hr BTU, Sweat, Aluminum
Russell Vantix™ Furnace Coil, TCFZ Series, Sweat Connection, 48000 Btu/hr, 600 to 1900 cfm, For Use With: Gas and Oil Furnaces, Aluminum, 32 in H x 24-1/2 in W x 21-11/16 in D, Additional Information: 3/8 x 7/8 in Connection, Multi-Poise Configuration, R-410B Refrigerant, Cased N Coil, 8.55 sq-ft Face Area, 16 Fins Per Inch, 2-Row
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,002.74 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Additional Information3/8 x 7/8 " Connection, Multi-Poise Configuration, R-410B Refrigerant, Cased N Coil, 8.55 sq-' Face Area, 16 Fins Per ", 2-Row
BTU Rating48000
CFM Rating600 to 1900
Connection TypeSweat
Dimensions32 " H x 24-1/2 " W x 21-11/16 " D
IndustryHVAC
MaterialAluminum
SeriesTCFZ Series
Suitable For Use WithGas and Oil Furnaces
Additional Information
AHRI Certified
Features & Benefits
- Russell® By Rheem Indoor Furnace cased coils are designed for use with Russell® By Rheem outdoor units and are available for vertical upflow or downflow, and horizontaleft or horizontal right airflow, when matched with Russell® By Rheem outdoor units, the coils provide a nominal capacity range from 18,000 BTU/HR [5.24 kW] to 60,000 BTU/HR [17.6 kW] Constructed of aluminum fins bonded to internally grooved aluminum tubing Coils are tested at the factory with an extensive refrigerant leak check Coils have copper sweat refrigerant connections Feature two sets of 3/4" [19.1 mm] N.P.T. Condensate drain connections for ease of connection Chatleff metering device connections, at inlet and outlet of TXV or EXV and equalizer connections (TXV only) Approved for system application with variety of Russell® By Rheem outdoor units Condensate drain pan is constructed of high grade, heat resistant, corrosion free thermal-set material Compatible with Germicidal Light System (UV resistant) Bi-Directional airflow eliminates the need to switch any internal components from horizontal left to right Unique drain pan design maximizes application flexibility and condensate removal N-Coil design maximizes performance and minimizes height required at installation Coils are AHRI certified for system application with a variety of Russell® By Rheem outdoor units
Russell Vantix™ TCFZ Series TCFZ4824STANMC Furnace Coil, 48000 Btu/hr BTU, Sweat, Aluminum
BrandRheem®
MFG #TCFZ4824STANMC
Keller #1288519
