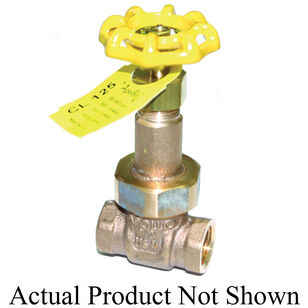

Apollo® 30 Series 3028601 Gate Valve, 1-1/4 in, FNPT, Bronze, 125 psi, 200 psi
Apollo® 30 Series 3028601 Gate Valve, 1-1/4 in, FNPT, Bronze, 125 psi, 200 psi
Apollo® Gate Valve, 30 Series, 1-1/4 in Nominal, FNPT Connection, 125 psi, 200 psi, Steam, Water Media, Handwheel Actuator, 8.1 in Top to Inlet Center, Bronze Body, Brass Stem, Bronze Disc, Bronze Trim, Graphite Packing, Malleable Iron Handle, Grafoil® Softgoods, Handwheel Operator, 80 Cv Flow Coefficient (Cv), -20 to 406 deg F, Material Standard: ASTM B16, B21, B62, Lead-Free, Yellow, 2.63 in L, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$327.35 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandApollo®
Actuator TypeHandwheel
ApplicationFor cooling, heating and steam applications
Body MaterialBronze
ColorYellow
Connection TypeFNPT
Dimensions2.63 " L
Disc MaterialBronze
Domestic/ImportDomestic
Flow Coefficient (Cv)80
Handle MaterialMalleable Iron
Material StandardASTM B16, B21, B62
MediaSteam, Water
Nominal Size1-1/4
Operator TypeHandwheel
Packing MaterialGraphite
Pressure Rating125 psi, 200 psi
Series30 Series
Softgoods MaterialGrafoil
Stem MaterialBrass
Temperature Rating-20 to 406
Top to Inlet Center8.1
Trim MaterialBronze
Additional Information
ARRA Compliant|ASME B1.20.1|CRN 0C14667.5|MSS-SP-80
Features & Benefits
- Guided solid bronze disc wedge Adjustable graphite stem packing Rising stem Dezincification-resistant All bronze construction 100% factory tested Malleable iron rugged hand wheel 100% cast, machined and assembled in the USA
Documents
Marketing Information
The Apollo® model 103T (30 Series) gate valve provides a cost-effective made in the USA alternative to globally sourced multi-turn valves. These valves are cast, machined, assembled and tested in South Carolina. The Apollo® gate valve is ideal for use in a wide variety of plumbing and heating applications including building service piping systems.
Apollo® 30 Series 3028601 Gate Valve, 1-1/4 in, FNPT, Bronze, 125 psi, 200 psi
BrandApollo®
MFG #3028601
Keller #1289078
My Part ##
Last Ordered#
$327.35 / ea
