• Valve pressure rating 250 psi/17.2 bar non-shock cold working pressure
• Maximum service temperature 250 degreeF
• Copper-to-copper connections
• Full port
• Laser Welded
• Reversible Handle
• Easily Adjustable Pack Nut
• Triple Sealed Stem
• Blowout-proof Stem
• Silicon Performance Bronze Body, Ball and Stem, Optional Stainless Steel Trim
• Reinforced PTFE Seat Rings
• Lead-free
• Press x press female end connections
• Press leak-detection feature
• Multiple handle options, including NIB-Seal
• Dezincification resistant
• Conforms to MSS SP-110
• Conforms to MSS SP-145
• NSF/ANSI/CAN-372
• IAPMO/ANSI Z1157

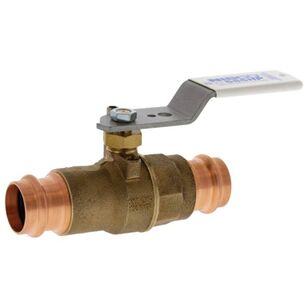

NIBCO engineers have redesigned the top works of the valve to make it easier to install and service. The stem is triple sealed with double O-rings and PTFE packing. The easily accessible, large pack nut can be tightened without removing the handle or using a special wrench. This also allows for the packing to be replaced and serviced. The handle is reversible without disconnecting the valve.585HP ball valve features press ends for easy installation. Please refer to NIBCO technical data sheet, valve selection guides and catalog for engineering and installation information. When performance matters, choose the NIBCO 585HP ball valves for the most advanced and versatile valve option in commercial, residential, mechanical and industrial applications. NIBCO ball valves are backed by the industry leading NIBCO INC. 10-year 125 Percent limited warranty.
