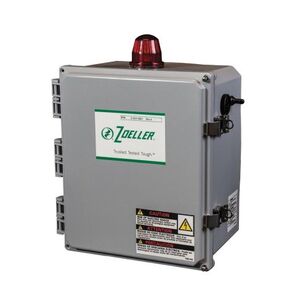

Zoeller® Pivot Series 31314-0001 Simplex Control Panel
Zoeller® Pivot Series 31314-0001 Simplex Control Panel
Zoeller® Simplex Control Panel, Pivot Series, 120/208/240 V, 5 W Power Consumption, 60 Hz, -40 to 140 deg F, 12 x 10 x 6 in, Additional Information: 0 to7 FLA, NEMA 4X Enclosure
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,134.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandZoeller®
Additional Information0 to7 FLA, NEMA 4X Enclosure
Dimensions12 x 10 x 6
Frequency Rating60
IndustryPlumbing
Power Consumption5
SeriesPivot Series
Temperature Rating-40 to 140
Voltage Rating120/208/240
Additional Information
cCSAus Certified|FCC Class B|ISED Canada ICES-003|UL 508
Features & Benefits
- Red alarm beacon with 360 deg visibility Audible alarm buzzer rated 95 dB at 2 ft Silence/reset/test toggle switch with weatherproof rubber boot Hand/off/auto control are included for each pump Auxiliary output dry contacts (NO-COM-NC) terminals, Form C, 5 A resistive load NEMA 4X 12 x 10 x 6 in enclosure with lockable latch Control circuit powered by 120 VAC, 60 Hz Alarm circuit can be powered by separate power feed, if needed Alarm and control circuits individually fused, 3 A, fast-acting, 120 VAC Circuit breaker protection Max alarm and control circuit power consumption - simplex models 32 W Max standby power consumption - 5 W Terminals for 120 VAC control power, 120 VAC alarm power, up to four float switches (duplex), pump input power All wires and terminal locations thoroughly labeled for easy identification
