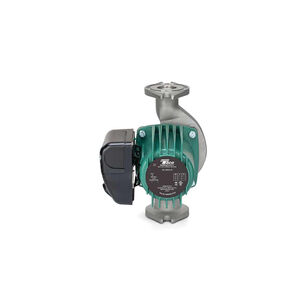

Taco Comfort Solutions® 00 Series 0012 0012-MSF2-IFC Cartridge Circulator, 42 gpm, 115 V, 1.65 A, 60 Hz, 3250 rpm Motor
Taco Comfort Solutions® 00 Series 0012 0012-MSF2-IFC Cartridge Circulator, 42 gpm, 115 V, 1.65 A, 60 Hz, 3250 rpm Motor
Taco Comfort Solutions® Cartridge Circulator, 00 Series, Model: 0012, 42 gpm Flow Rate, 14 ft Maximum Head, 115 V, 1.65 A, 60 Hz, 125 psi Maximum Pressure, 3250 rpm Motor Speed Rating, 1/8 hp, 3/4 in, 1 in, 1-1/4 in, 1-1/2 in Connection, Flanged Connection, 1 ph Phase, 40 to 210 deg F, Iron, 8-7/16 in L x 6-9/64 in W x 8-1/2 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,047.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandTaco Comfort Solutions®
Amperage Rating1.65
Connection Size3/4 ", 1 ", 1-1/4 ", 1-1/2 "
Connection TypeFlanged
Dimensions8-7/16 " L x 6-9/64 " W x 8-1/2 " H
Flow Rate42
Frequency Rating60
HP Rating1/8
MaterialIron
Maximum Head14
Maximum Pressure125
Model0012
Motor Speed Rating3250
Phase1
Series00 Series
Temperature Rating40 to 210
Voltage Rating115
Additional Information
cULus Listed|Low Lead Compliant|NSF/ANSI 372
Features & Benefits
- 3-Speed Switch Fine tune to system requirements Highest performance & starting torque in class Heavy-Duty construction for longer life 4-bolt universal flange (0010 only) Removable high-flow Integral Flow Check (IFC® ) – Prevents gravity flow – Reduces installation costs – Improves pump performance Replaceable cartridge design Quiet, efficient operation Self lubricating, no mechanical seal Wide range of applications Cast Iron or Stainless Steel, flanged construction
Documents
Marketing Information
Our powerful 0012 3-Speed circulator is designed for high-flow/medium head applications in large residential/light commercial hydronic heating or chilled water cooling systems. Its high flow capacity is ideal for primary loops or high flow , high BTU applications. We‘ve added a robust switch and knob assembly and a large wiring box to simplify installation. The Stainless steel 0012 3-Speed is best suited for potable water and hot water recirculation systems. The 0012 3-Speed is a direct replacement for the Grundfos UPS43-44 3-Speed.
Taco Comfort Solutions® 00 Series 0012 0012-MSF2-IFC Cartridge Circulator, 42 gpm, 115 V, 1.65 A, 60 Hz, 3250 rpm Motor
BrandTaco Comfort Solutions®
MFG #0012-MSF2-IFC
Keller #1292705
