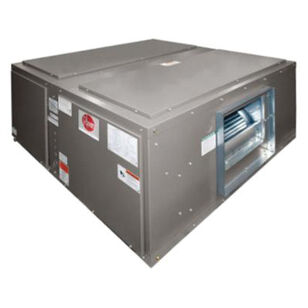

Rheem® SAC 13 Series RHCLA2090CBR Commercial Air Handler, 7.5 ton, 90000 Btu/hr Cooling, 90000 Btu/hr BTU, 3000 cfm
Rheem® SAC 13 Series RHCLA2090CBR Commercial Air Handler, 7.5 ton, 90000 Btu/hr Cooling, 90000 Btu/hr BTU, 3000 cfm
Rheem® Commercial Air Handler, RHCLA Series, 7.5 ton Nominal Capacity, 90000 Btu/hr Cooling Capacity, 90000 Btu/hr BTU Rating, 208/230 V Voltage Rating, 6.2 A Amperage Rating, 26.4 kW Wattage, 2 hp Rating, 60 Hz Frequency Rating, 3 ph Phase, 1750 rpm Rotational Speed, 3000 cfm Rating, 11.2 EER Rating, 14.8 IEER Rating, Connection Type: NPT Female, R-410 Refrigerant Type, 15 A Fuse Rating, 3/4 in Connection, 1/2 in Liquid Line Size, 1-1/8 in Suction Line Size, (4) 16 x 25 x 1 in Filter Size, 2 Number of Stages, 2 Number of Speeds, 450 psig Coil, 18 ga Sheet Metal, Galvanized, 52 in L x 27 in H Dimensions, 10.2 sq-ft Coil Face Area, 3/8 in Dia Coil Tube, 12 in Dia x 12 in W Blower Size, Belt VFD Low Static Drive Package, Direct Expansion, Horizontal/Vertical, 330 lb Weight Additional Information
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$9,017.40 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRheem®
Additional Information10.2 sq-' Coil Face Area, 3/8 " Dia Coil Tube, 12 " Dia x 12 " W Blower Size, Belt VFD Low Static Drive Package, Direct Expansion, Horizontal/Vertical, 330 lb Weight
Amperage Rating6.2
BTU Rating90000
CFM Rating3000
Connection Size3/4
Connection TypeNPT Female
Cooling Capacity90000
Dimensions52 " L x 27 " H
EER Rating11.2
Filter Size(4) 16 x 25 x 1
FinishGalvanized
Frequency Rating60
Fuse Rating15
HP Rating2
IEER Rating14.8
IndustryHVAC
Liquid Line Size1/2
Material18 ga Sheet Metal
Nominal Capacity7.5
Number of Speeds2
Number of Stages2
Phase3
Pressure Rating450 psig Coil
Refrigerant TypeR-410
Rotational Speed1750
SeriesRHCLA Series
Suction Line Size1-1/8
Voltage Rating208/230
WarrantyLimited Lifetime
Wattage26.4
Additional Information
AHRI Certified|cULus Listed|DOE 2023
Features & Benefits
- The pre-painted, sheet metal cabinet uses 18 ga material for structural components with an underlying coat of G60 electro deposition powder-coating that is tested to withstand a rigorous 500 hr salt spray test, per ASTM B117 Inherently protected motors are mounted inside of insulated cabinet to reduce motor noise Allows for horizontal installation in most standard drop ceiling applications and the movement of units through most standard doorways for addition or replacement work 1 in throwaway filters are standard, but filter racks are designed to accept either 1 in or 2 in filters Two circuit, interlaced row split coils are constructed with copper tubes and aluminum fins mechanically bonded to the tubes for maximum heat transfer capabilities All coil assemblies are leak tested up to 450 psig internal pressure prior to installation into units Provides two-stage airflow for improved part load efficiency, Meets California Title 24 requirements Field piping connections are made through a fixed post between two side access panels on either side of the unit Allows flexibility to meet most field conditions as well as full accessibility after the installation is complete Units may be used with two straight cool condensing units or single circuit manifolded in the field using the copper fittings shipped with each unit The galvanized steel drain pan is designed to trap condensate in either vertical or horizontal installations Condensate drain connections are located on both sides of the unit allowing complete flexibility to meet most field conditions Two removable panels on top and each side of the unit are easily removed for access to motors, blowers, sheaves and filters All Models are designed for either application and can be installed in either position as supplied from the factory
Marketing Information
Rheem® commercial air handlers bring a higher level of comfort to your business while keeping utility bills low. Our versatile, low profile design accommodates a variety of business needs, including cooling only operation or both cooling and heating, as well as horizontal or vertical installation. Plus, the insulated cabinet reduces motor noise for quiet operation.
Rheem® SAC 13 Series RHCLA2090CBR Commercial Air Handler, 7.5 ton, 90000 Btu/hr Cooling, 90000 Btu/hr BTU, 3000 cfm
BrandRheem®
MFG #RHCLA2090CBR
Keller #1295124
