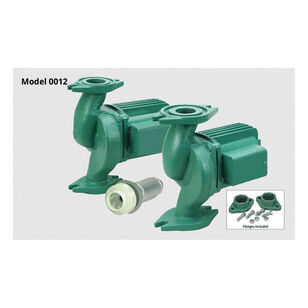

Taco Comfort Solutions® 00 Series 0012 0012-F4 Circulator Pump, 52 gpm, 115 V, 1.33 A, 60 Hz, 150 psi Max Pressure, Iron
Taco Comfort Solutions® 00 Series 0012 0012-F4 Circulator Pump, 52 gpm, 115 V, 1.33 A, 60 Hz, 150 psi Max Pressure, Iron
Taco Comfort Solutions® Circulator Pump, 00 Series, Model: 0012, 52 gpm Flow Rate, 14-1/2 ft Maximum Head, 115 V, 1.33 A, 60 Hz, 150 psi Maximum Pressure, 3250 rpm Motor Speed Rating, 1/8 hp, 1-1/2 in Connection, Flanged Connection, 1 ph Phase, 230 deg F Fluid, Iron, 8-1/2 in H x 8-5/8 in W x 5-1/2 in D, Additional Information: Non-Metallic Impeller Material
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,073.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandTaco Comfort Solutions®
Additional InformationNon-Metallic Impeller Material
Amperage Rating1.33
Connection Size1-1/2
Connection TypeFlanged
Dimensions8-1/2 " H x 8-5/8 " W x 5-1/2 " D
Flow Rate52
Frequency Rating60
HP Rating1/8
MaterialIron
Maximum Head14-1/2
Maximum Pressure150
Model0012
Motor Speed Rating3250
Phase1
Series00 Series
Temperature Rating230 deg F Fluid
Voltage Rating115
Additional Information
ANSI/NSF 372|cUL Listed
Features & Benefits
- Exclusive ACB anti-condensate baffle with ambient air flow-protects motor windings against condensate build-up High velocity performance - compact design Quiet, efficient operation Direct drive - low power consumption Unique replaceable cartridge design - field serviceable Self lubricating No mechanical seal Unmatched reliability Universal flange to flange dimensions Ceramic shaft Carbon bearings, stainless Steel cartridge, aluminum stator housing EPDM O-ring and gaskets
Marketing Information
The high velocity series Taco 0012 Cartridge Circulator is designed for high flow/medium head applications in large residential/light commercial hydronic heating, radiant heating and chilled water cooling systems. The unique ACB anti-condensate baffle with ambient air flow prevents the build up of condensate on the motor windings when pumping chilled water. Its unique field-serviceable cartridge contains all moving parts. Replacing the cartridge rebuilds the circulator. With no mechanical seal, the self-lubricating, maintenance free design provides unmatched reliability. Compact and lightweight, with excellent performance characteristics, the 0012 is ideal for high efficiency jobs where space is a premium. Available in cast iron or stainless steel construction.
Taco Comfort Solutions® 00 Series 0012 0012-F4 Circulator Pump, 52 gpm, 115 V, 1.33 A, 60 Hz, 150 psi Max Pressure, Iron
BrandTaco Comfort Solutions®
MFG #0012-F4
Keller #129598
