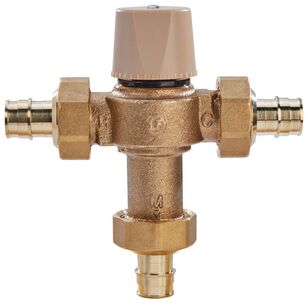

3/4 IN Lead Free Thermostatic Mixing Valve Cold Expansion Fitting CEF/PEX F1960 End Connections Adjustable Out 80-120 F
3/4 IN Lead Free Thermostatic Mixing Valve Cold Expansion Fitting CEF/PEX F1960 End Connections Adjustable Out 80-120 F
3/4 IN Lead Free Thermostatic Mixing Valve Cold Expansion Fitting CEF/PEX F1960 End Connections Adjustable Out 80-120 F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$759.50Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Marketing Information
Attributes
BrandWATTS®
Depth6.31"
FinishRough Bronze
Flow Rate (GPM)0.5 to 20 gal/min
Height2.63"
IndustryPlumbing
MaterialLead Free Copper Silicon Alloy
Outlet Connection Size3/4"
Prop 65 WarningYes
Weight2.5 lbs.
Width4.5"
Shipping Dimensions (L x W x H)6.313" x 4.5" x 2.63"
Features & Benefits
- Lead free brass construction
- Thermal actuation technology for precise temperature control
- Locking mechanism secures temperature setting
- ASSE 1017, ASSE 1069, ASSE 1070 certified, IAPMO cUPC certified, approved to CSA B125.3 and B125.70
Marketing Information
This 3/4 inch lead free thermostatic mixing valve is designed for residential, commercial or institutional environments for supplying baths or lavatories with tempered water. The double throttling design controls both hot and cold water supply to the mixed outlet. It consists of a lead free brass body, cold expansion fitting (CEF/PEX F1960) end connections for PEX-a tubing, solid wax hydraulic principle thermostat, integral filter washers and check valves with a locking mechanism for the temperature setting. The adjustable field range temperature at mixed outlet is 80 to 120 degrees F (27 to 49 degrees C). The maximum pressure rating is 150 psi (10.3 bar).
3/4 IN Lead Free Thermostatic Mixing Valve Cold Expansion Fitting CEF/PEX F1960 End Connections Adjustable Out 80-120 F
BrandWATTS®
MFG #6551632
Keller #1296125
