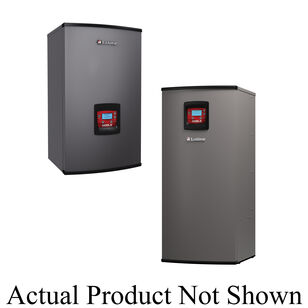

Lochinvar® NOBLE® NCF199N Combination Gas Boiler/Space Heating Appliance, 95 % AFUE, 185 MBtu/hr Capacity, 120 V
Lochinvar® NOBLE® NCF199N Combination Gas Boiler/Space Heating Appliance, 95 % AFUE, 185 MBtu/hr Capacity, 120 V
Lochinvar® NOBLE® Combination Gas Boiler/Space Heating Appliance, 120 V, 60 Hz Frequency, 1 ph, 95 % AFUE, 185 MBtu/hr, 19.9 to 199 MBtu/hr BTU, 185 MBtu/hr Capacity, 5.2 gpm Flow Rate, 50 psi Pressure, Natural Gas Fuel, Direct Vent, Modulating Burner, Chimney/Breeching/Vent Size: 3 in, Ignition System: Direct Spark, Floor, Wall Mounting, Dimensions: 47-3/4 in H x 21 in W x 21-1/4 in D, Additional Information: 1/2 in Gas Connection, 3 in Air Inlet, 1 in Boiler Water Connection, 3/4 in DHW Water Connection, Digital Control
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$4,642.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandLochinvar®
Additional Information1/2 " Gas Connection, 3 " Air Inlet, 1 " Boiler Water Connection, 3/4 " DHW Water Connection, Digital Control
AFUE Rating95
BTU Rating185 MBtu/hr, 19.9 to 199 MBtu/hr
Burner TypeModulating
Capacity185
Chimney/Breeching/Vent Size3
Dimensions47-3/4 " H x 21 " W x 21-1/4 " D
Flow Rate5.2
Frequency Rating60
Fuel TypeNatural Gas
Ignition SystemDirect Spark
IndustryHydronics
Mounting TypeFloor, Wall
Phase1
Pressure Rating50
Vent TypeDirect
Voltage Rating120
Additional Information
AHRI Certified|ASME Specified|ENERGY STAR Certified
Features & Benefits
- Multi-material connector allows either PVC, CPVC, polypropylene or stainless steel connection directly to the appliance without adapters NOBLE® also has a built-in combustion analyzer port Offers five venting options for tremendous installation flexibility It permits direct vent air intake and exhaust runs up to 100 equivalent feet using either PVC, CPVC, polypropylene or AL29-4C stainless steel vent pipe Safely and reliably operates with supply gas pressure as low as 4 in water column Its negative regulation (neg/reg) technology eliminates mechanical dampers as it automatically adjusts fan speed to ensure the correct volume and mix of fuel and air throughout the firing range The fire tube design can produce a higher heat transfer coefficient than traditional fire tubes The stainless steel heat exchanger quickly transfers heat from the boiler system to the domestic water, satisfying DHW load NPT water connections make installation easy, especially with our optional isolation valves
Marketing Information
With three models ranging from 110000 to 199000 Btu/hr. The NOBLE® combi boiler offers easy installation and serviceability, true instantaneous response time and a user friendly interface. In addition to 10:1 turndown and 95% annual fuel utilization efficiency (AFUE), the NOBLE® fire tube combi boiler is designed, engineered and assembled in the USA.
