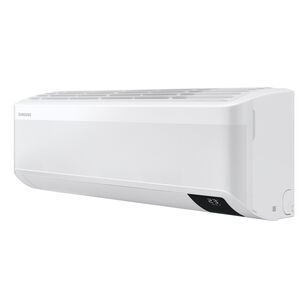

Samsung WindFree™ 3.0e AR15CSFCMWKNCV Evaporator Indoor Split System With Galvanized Steel Mounting Plate, 208 to 230 V
Samsung WindFree™ 3.0e AR15CSFCMWKNCV Evaporator Indoor Split System With Galvanized Steel Mounting Plate, 208 to 230 V
Samsung WindFree™ 3.0e Evaporator Indoor Split System, 208 to 230 V, 5.6 A, 27 W, 40 W, 60 Hz, 1 ph, 3 Number of Fan Speeds, 15000 Btu/hr, 445 cfm, 494 cfm, 540 cfm, 586 cfm Rating, 12 EER, 19.3 SEER, HSPF: 8.3, 1/4 in Flared High Side, 1/2 in Flared Low Side, 11/16 in OD Condensate Connection Type, 25 A Fuse, 27 dB, 41 dB, Wall Mount, 50 to 86 deg F Cooling, 61 to 90 deg F Heating, 41-9/16 in Overall Width, 11-3/4 in Overall Height, Additional Information: 8-7/16 in D Dimensions, R-410A Refrigerant
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$854.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSamsung
Additional Information8-7/16 " D Dimensions, R-410A Refrigerant
Amperage Rating5.6
BTU Rating15000
CFM Rating445 cfm, 494 cfm, 540 cfm, 586 cfm
Connection Type1/4 " Flared High Side, 1/2 " Flared Low Side, 11/16 " OD Condensate
EER Rating12
Frequency Rating60
Fuse Rating25
HSPF Rating8.3
IncludesWireless Controller
IndustryHVAC
Mounting TypeWall
Number of Fan Speeds3
Overall Height11-3/4
Overall Width41-9/16
Phase1
Power Rating27 W, 40 W
SEER Rating19.3
Sound Level27 dB, 41 dB
Temperature Rating50 to 86 deg F Cooling, 61 to 90 deg F Heating
Voltage Rating208 to 230
Additional Information
AHRI 210/240|cETLus Listed|ENERGY STAR Certified|UL 60335-2-40
Features & Benefits
- The indoor unit shall feature WindFree™ mode In cooling mode, as room temperature nears set temperature, the unit will close its louver and will disperse air into the space through thousands of micro holes on the front of the indoor unit preventing cold air drafts on occupants The indoor unit shall have Wi-Fi capability as standard The indoor unit shall have easy access to wire, pipe and drain connections via access panel on the bottom of the unit for simple installation and service The heat exchangers shall be mechanically bonded fin to copper tube The compressor shall be hermetically sealed, inverter controlled, BLDC rotary The indoor fan shall be a single, anti-bacterial cross-flow type Three-fan speed settings and auto setting Automatic (motorized) vertical swing (up/down) and horizontal swing (left/right) louvers The system shall have a built-in Wi-Fi adapter as standard to allow control and monitoring using the Samsung SmartThings app (Android, iOS) Dual set temperature support when connected to MWR-WG00UN advanced wired controller The indoor unit shall have a simple connection for overflow detection devices or any other normally closed contact for simple unit shutdown The indoor unit shall ship with a wireless controller, holder and batteries Samsung central control compatible (MIM-R10UN accessory required) Interconnect control wire between outdoor and indoor unit shall be two 16 AWG System energy consumption can be viewed using the Samsung SmartThings mobile app or on the indoor unit display using the included wireless controller AI (artificial intelligence) auto mode technology monitors factors such as indoor temperature, outdoor temperature, set temperature and operating time to learn the patterns within your home to automatically adjust system operation to maximize occupant comfort and efficiency (Wi-Fi connection required) Eco mode to reduce energy consumption during low demand operation Smart install mode - startup system diagnostics operation to ensure system readiness during initial operation Auto restart
Marketing Information
Samsung's exclusive WindFree™ cooling technology provides users with a cool indoor climate without the discomfort of direct cold airflow. It's an advantage no other system can match.
