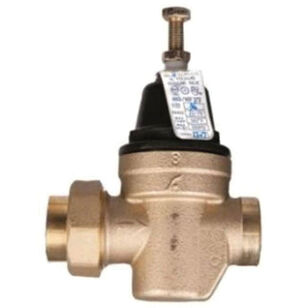

MIFAB® PRV-C Series PRV1.00-DU-IPS-C-LL Compact Water Pressure Reducing Valve, 1 in Nominal, FNPT x FNPT, Bronze Body
MIFAB® PRV-C Series PRV1.00-DU-IPS-C-LL Compact Water Pressure Reducing Valve, 1 in Nominal, FNPT x FNPT, Bronze Body
MIFAB® Compact Water Pressure Reducing Valve, PRV-C Series, 1 in Nominal, FNPT x FNPT Connection, 25 to 75 psi, 300 psi, 4.96 in Top to Inlet Center, Material Standard: ASTM B584, Bronze Body, Engineered Polymer Seat, EPDM Disc, 33 to 180 deg F, 5.24 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$171.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandMIFAB®
Body MaterialBronze
Connection TypeFNPT x FNPT
Dimensions5.24 " H
Disc MaterialEPDM
IndustryPlumbing
Material StandardASTM B584
Nominal Size1
Pressure Rating25 to 75 psi, 300 psi
Seat MaterialEngineered Polymer
SeriesPRV-C Series
Temperature Rating33 to 180
Top to Inlet Center4.96
Warranty1 Year
Additional Information
ASSE 1003|CSA B356|IAPMO Approved
Features & Benefits
- Internal bypass for thermal expansion Convenient strainer and seat access In line serviceability Corrosion-resistant body and cover Single or double union connection Stainless steel strainer
Documents
Marketing Information
A water pressure reducing valve with a built-in strainer shall be installed in the incoming water line where supply main pressure exceeds 60 psi (413 kPa). The pressure reducing valve shall consist of a bronze body and metal cap and shall have an adjustment screw to allow adjusting the pressure down to 50 psi (345 kPa) and shall be designed for incoming pressures up to 300 psi (20.7 bar). The device must have a built-in strainer that will stop debris from entering the pressure reducing chamber and is removable for cleaning. Valve shall be of the balanced piston design and shall reduce pressure in both flow and no flow conditions.
MIFAB® PRV-C Series PRV1.00-DU-IPS-C-LL Compact Water Pressure Reducing Valve, 1 in Nominal, FNPT x FNPT, Bronze Body
BrandMIFAB®
MFG #PRV1.00-DU-IPS-C-LL
Keller #1298554
My Part ##
Last Ordered#
$171.00 / ea
