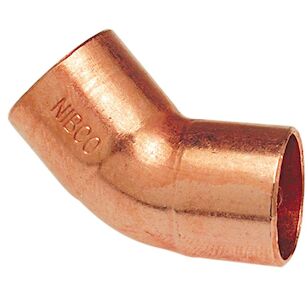

Name: 606 6 CXC 45 ELBOW WROT
Brand: NIBCO®
SKU: 129864
Price: 2956 USD
Availability: OutOfStock

Attributes

BrandNIBCO®

All ApplicationsACR Air Conditioning / Refrigeration;Lead-Free

All Basic MaterialCopper

All Type Of ItemFitting

ApplicationsACR Air Conditioning/Refrigeration, Lead-Free

End ConnectionSolder

Fitting Bend Angle45 Deg (1/8 Bend)

Height6.38"

IndustryPlumbing

Lead-FreeYes

Length10.95"

Low Lead CompliantTrue

Made in USATrue

MaterialCopper

Metal End Connection TypeC x C

Mpg10

Nominal Pipe Size6

Nominal Size 16".

Nominal Size 26".

Potable Water CodeLL Compliant NSF/ANSI 372

Size Dimensions6". x 6".

System UseCommercial Plumbing, Compressed Air, Fire Protection, Heating, HVAC, Industrial, Irrigation, Lead Free*, Med-gas, Residential Plumbing

Type Of ElbowClose Rough

Type Of FittingElbow

Weight9.57 lbs.

Width9.05"

Features & Benefits

Lead-free
Dezincification resistant
ASTM B75 Alloy C12200
NSF/ANSI/CAN-61 and 372
Material and workmanship per ASME B16.22
Material, workmanship and dimensions per MSS SP-104
Material, workmanship and dimensions per MSS SP-109 (5'' to 8'')
NFPA 99 Health Care Facilities Gas and Vacuum Systems and the Compressed Gas Association, Pamphlet G4.1 (medical gas)
UL 207 Recognized to 700 PSI (select diameters)

Documents

PVC-C-and-PVC-U-design-and-installation-manual.pdf

Marketing Information

The 45-degree elbow features solder cups. The fitting provides a means of changing the pipe line direction by 45 degrees. Please refer to NIBCO technical data sheets and catalogs for engineering and installation information. In addition to its inherent qualities of beauty, durability and low maintenance, copper''''s reusability makes it an ideal application in sustainable projects. NIBCO copper fittings are manufactured in an ISO 9001 certified facility, and backed by a 50-year limited warranty. Because of its longstanding reputation for innovation and precision in design and manufacturing, NIBCO is the preferred brand in the industry.
