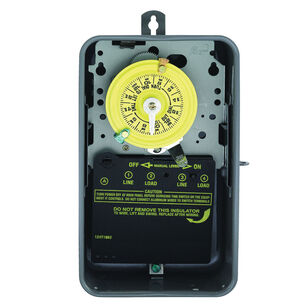

Intermatic T106R Mechanical Time Switch, 208 to 277 V, 60 Hz, Steel
Intermatic T106R Mechanical Time Switch, 208 to 277 V, 60 Hz, Steel
Intermatic® Mechanical Time Switch, 208 to 277 V, 60 Hz, 3 W, Type 3R Enclosure, Steel, Gray, -40 to 130 deg F, 10-1/8 in H x 6-1/2 in W x 3-5/8 in D, Additional Information: 1NO-1NC SPDT Switch Type, 24 hr Operation Mode
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$175.74 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandIntermatic®
Additional Information1NO-1NC SPDT Switch Type, 24 hr Operation Mode
ApplicationIndoor Lighting Control, Outdoor Lighting Control and Timing/Scheduling On/Off Applications
ColorGray
Dimensions10-1/8 " H x 6-1/2 " W x 3-5/8 " D
Enclosure TypeType 3R
Frequency Rating60
Includes(1) On and (1) Off Tripper
IndustryLeisure
MaterialSteel
Power Rating3
Temperature Rating-40 to 130
Voltage Rating208 to 277
Warranty1 Year Limited
Shipping Dimensions (L x W x H)6.56" x 4" x 10.06"
Additional Information
cCSAus Certified|CSA C22.2-177 LR3730|cULus Listed|Green Energy Certified|UL 917
Features & Benefits
- Direct 24 hr control of most loads Up to 12 on/off operations each day with minimum on/off times of one hour Manual override Can be installed in most intermatic enclosures
Marketing Information
The T100 Series mechanical time switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 on/off operations per day. A manual override switch provides added convenience.
